Ignition Coil: Components

Fig 1: Identifying Ignition Coil Components (1 Of 2)
G05303585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

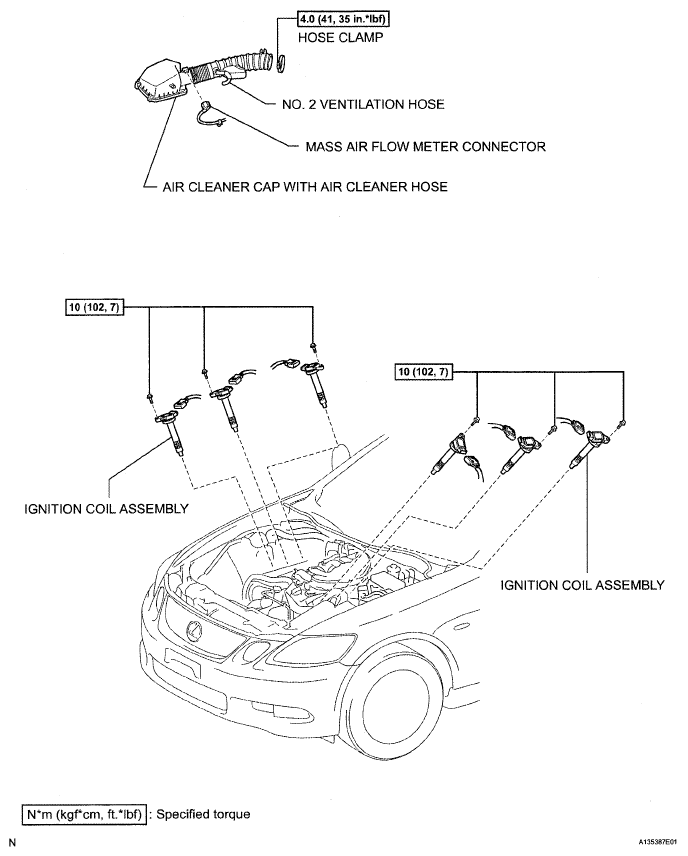

Fig 2: Ignition Coil Replacement Components With Torque Specifications (2 Of 2)
G05303586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
