Cigarette Lighter Assembly: Components: Notes

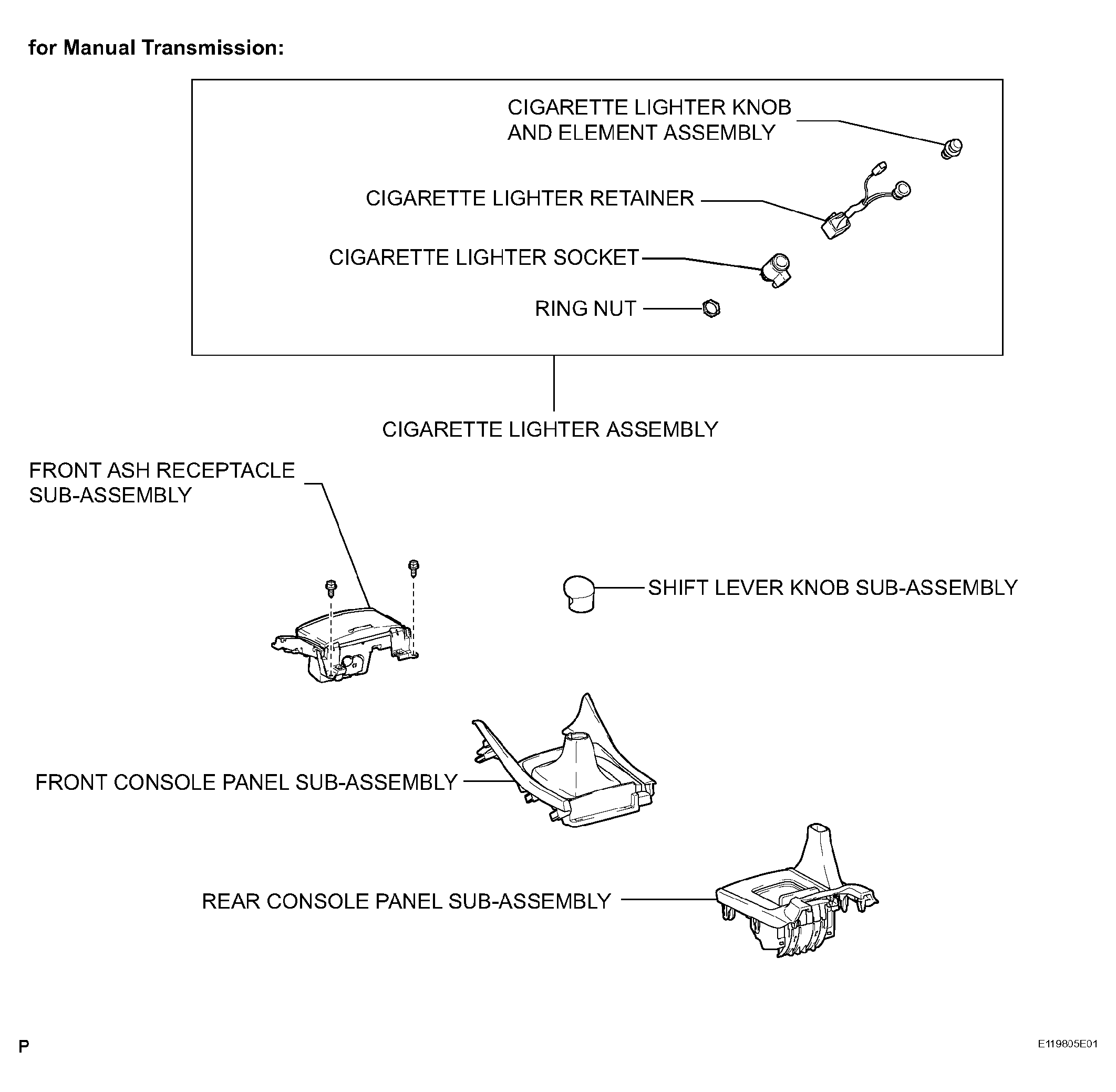

Fig 1: Identifying Cigarette Lighter Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

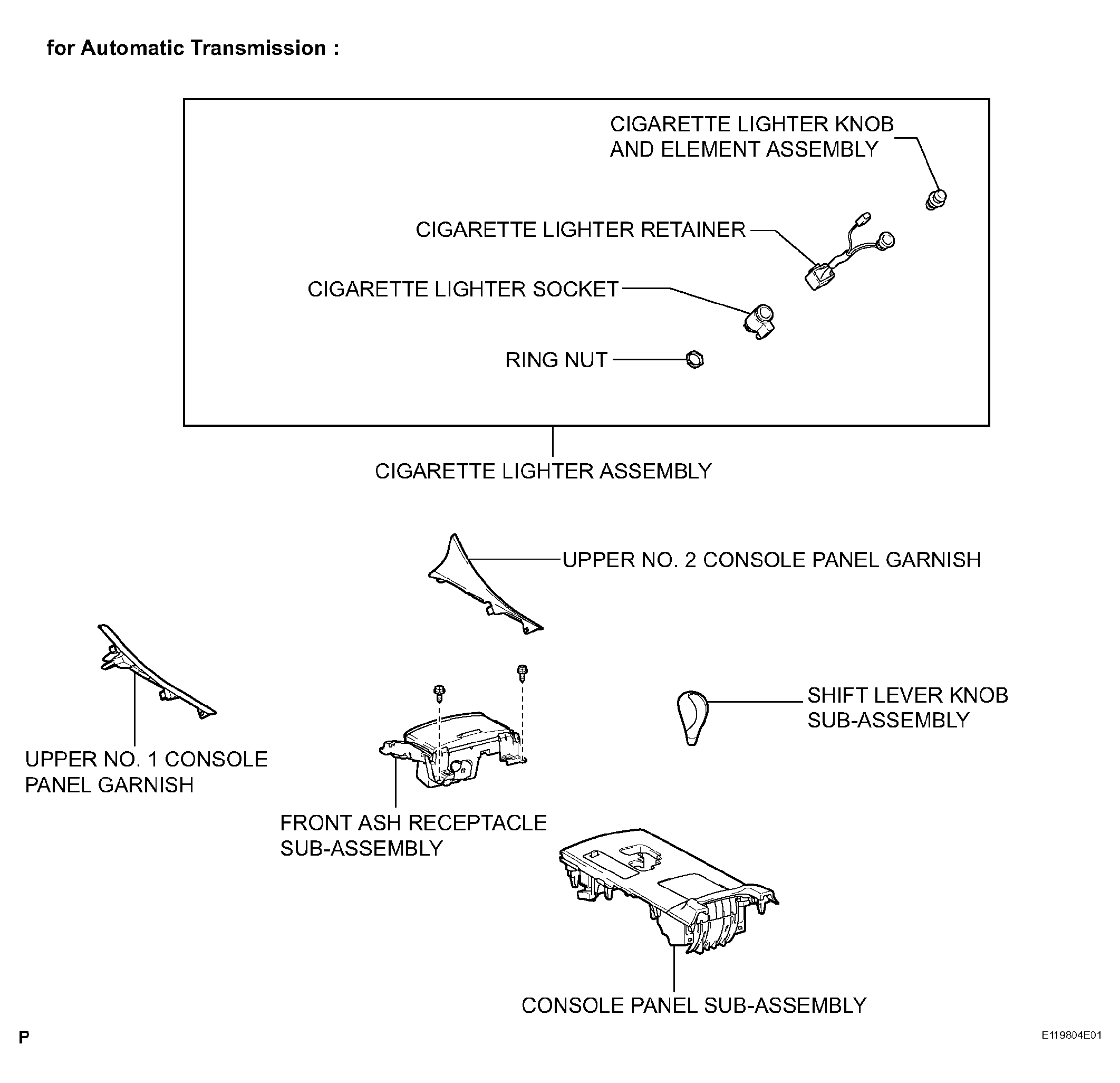

Fig 2: Identifying Cigarette Lighter Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
