Power Window Master Switch: Inspection

  1. INSPECT MASTER SWITCH ASSEMBLY
    1. Check that the LED illuminates.
    2. Apply battery voltage to the master switch and check that the LED illuminates.

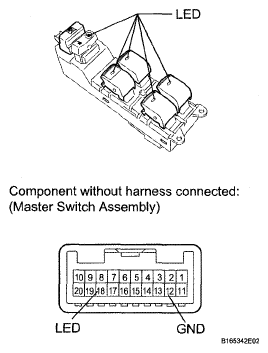

      Fig 1: Inspecting Master Switch Assembly
      G04952142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK :

      MASTER SWITCH ASSEMBLY

      Measurement Condition Specified Condition
      Battery positive (+) → 18 (LED)
      Battery negative (-) → 12 (GND)      		 LED illuminates

      If the result is not as specified, replace the switch assembly.
