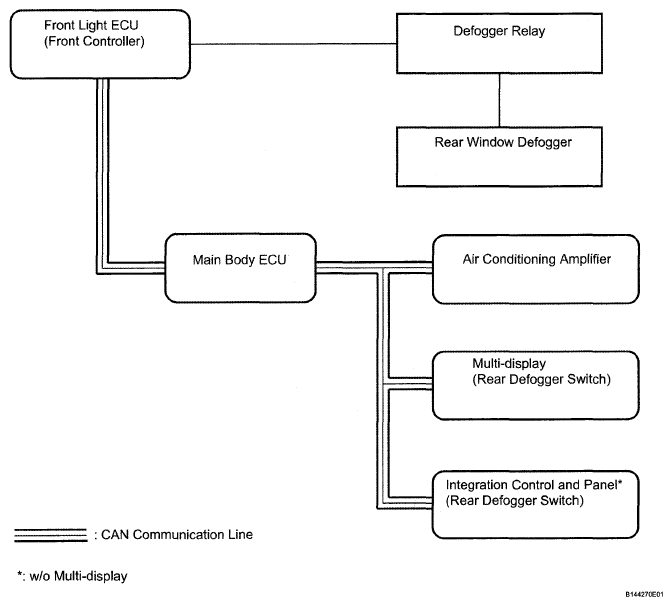

System Diagram
Communication table
COMMUNICATION CHART
| Transmitter | Receiver | Signal | Line |
|---|---|---|---|
| Multi-display | Air conditioning amplifier | Rear defogger switch signal | CAN |
| Integration control and panel* | Air conditioning amplifier | Rear defogger switch signal | CAN |
| Air conditioning amplifier | Front light ECU (Front controller) | Rear defogger switch signal | CAN |
| HINT: *: w/o Multi-display |
|||
