Rear Speed Sensor: Components

Fig 1: Identifying Rear Speed Sensor Components (1 Of 3)
G04949761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Rear Speed Sensor Components (2 Of 3)
G04949762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

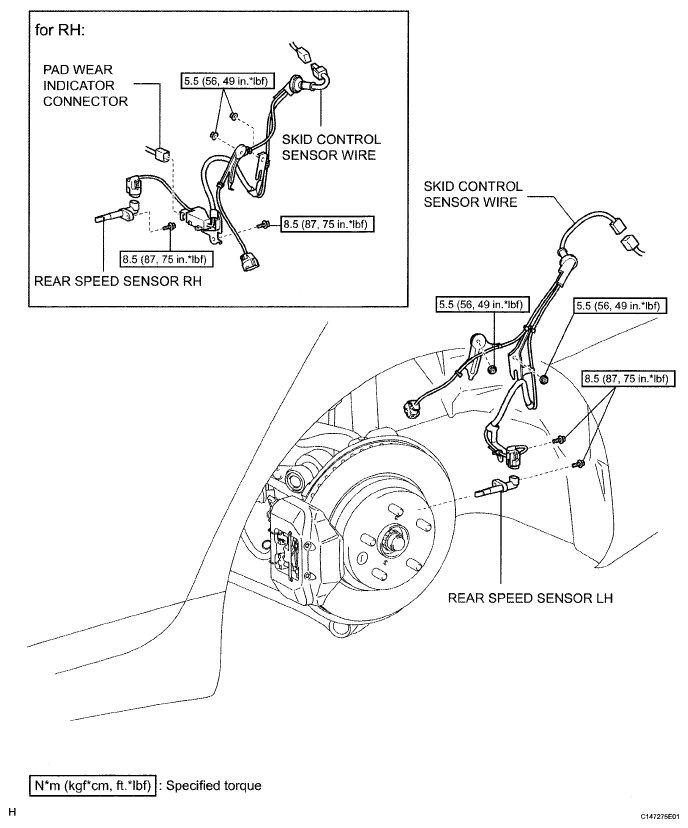

Fig 3: Rear Speed Sensor Replacement Components With Torque Specifications (3 Of 3)
G04949763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
