Home >> Lexus >> 2007 >> LS 460 >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control >> Yaw Rate And Acceleration Sensor >> Components

Yaw Rate And Acceleration Sensor: Components

Fig 1: Identifying Yaw Rate And Acceleration Sensor Components (1 Of 2)
G04949774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

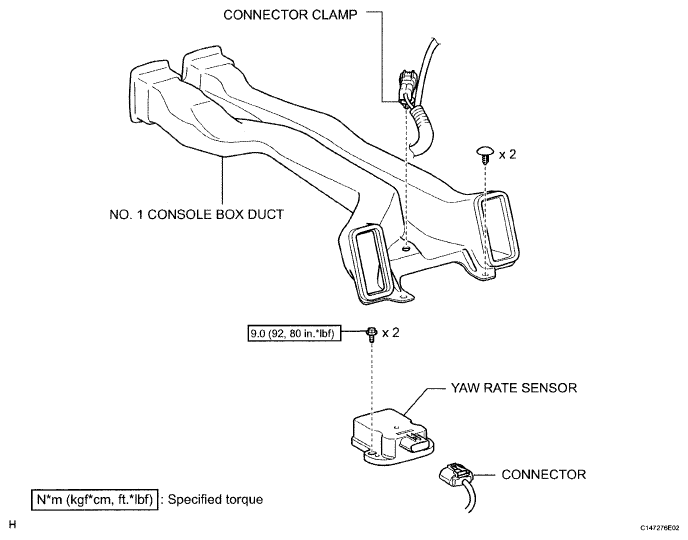

Fig 2: Yaw Rate And Acceleration Sensor Replacement Components With Torque Specifications (2 Of 2)
G04949775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
