Combination Meter: Components

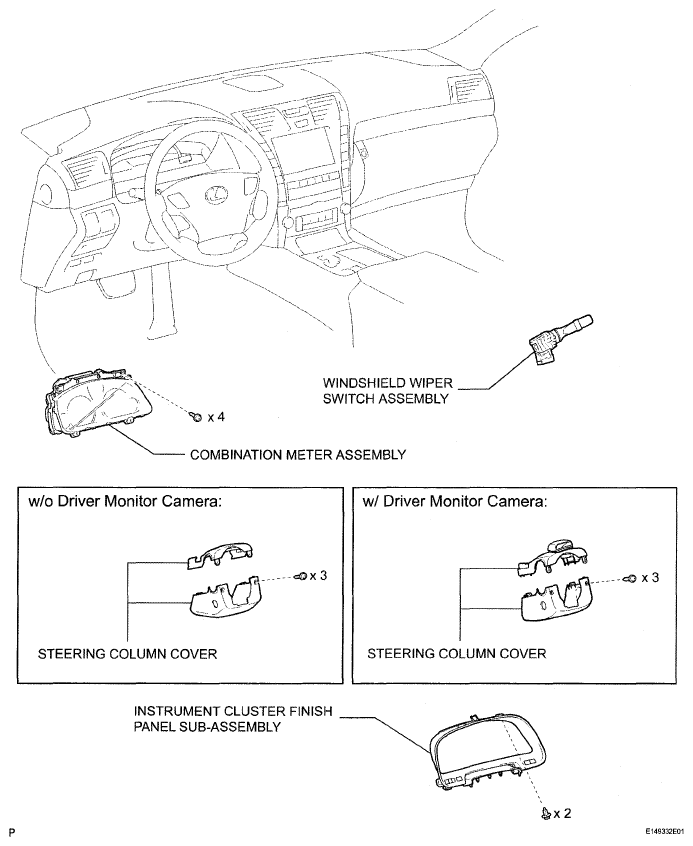

Fig 1: Identifying Combination Meter Components (1 Of 2)
G04945179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

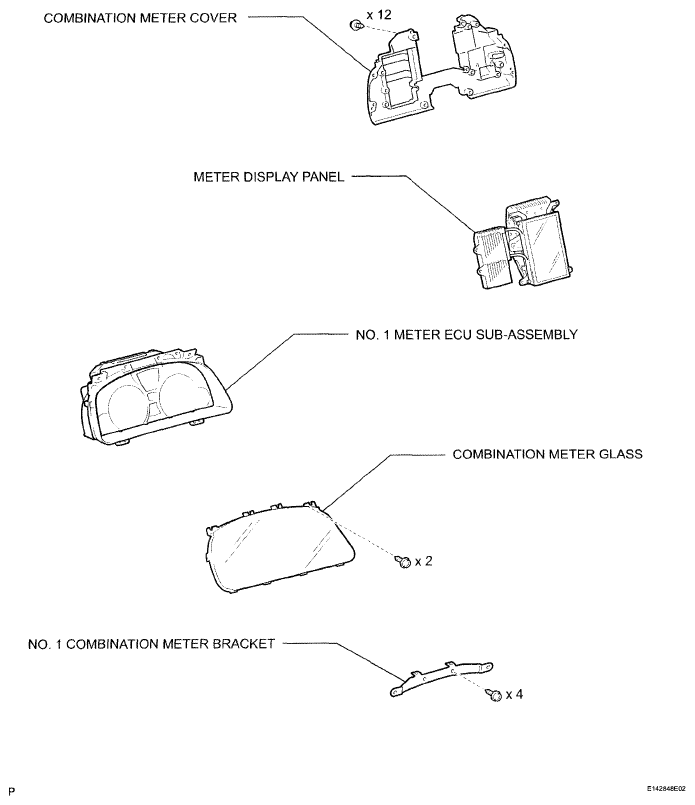

Fig 2: Identifying Combination Meter Components (2 Of 2)
G04945180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
