Combination Meter: Disassembly

  1. REMOVE NO. 1 COMBINATION METER BRACKET
    1. Remove the 4 screws and bracket.
      Fig 1: Identifying No. 1 Combination Meter Bracket Screws
      G04945185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE COMBINATION METER GLASS
    1. Remove the 2 screws.
    2. Detach the 6 claws and remove the meter glass.
      Fig 2: Identifying Combination Meter Glass Claws And Screws
      G04945186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE COMBINATION METER COVER
    1. Remove the 12 screws and meter cover.
      Fig 3: Identifying Combination Meter Cover Screws
      G04945187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE METER DISPLAY PANEL
    1. Detach the 6 claws and disconnect each wire harness.

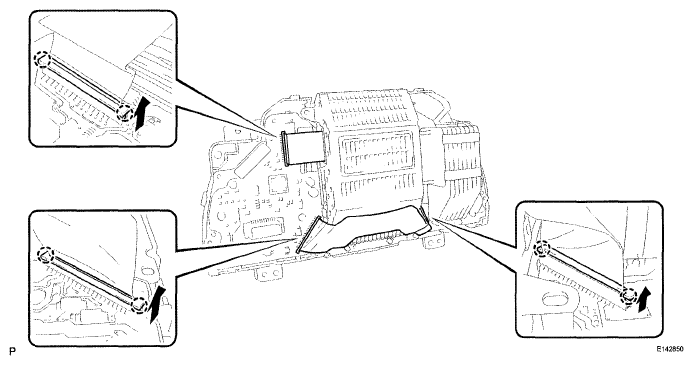

      Fig 4: Locating Meter Display Panel Claws
      G04945188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the display panel from the meter ECU.
      Fig 5: Removing Display Panel
      G04945189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
