Fuel Pump Resistor: Components

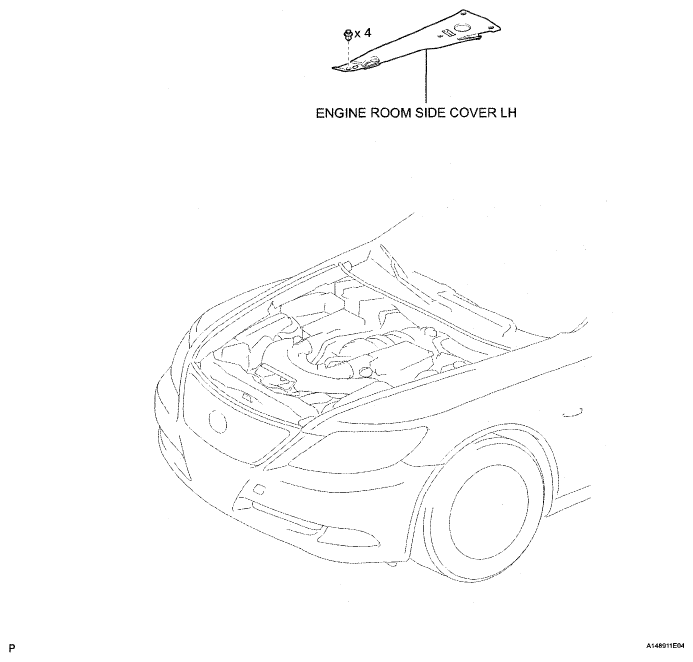

Fig 1: Identifying Fuel Pump Resistor Components (1 Of 2)
G04948076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

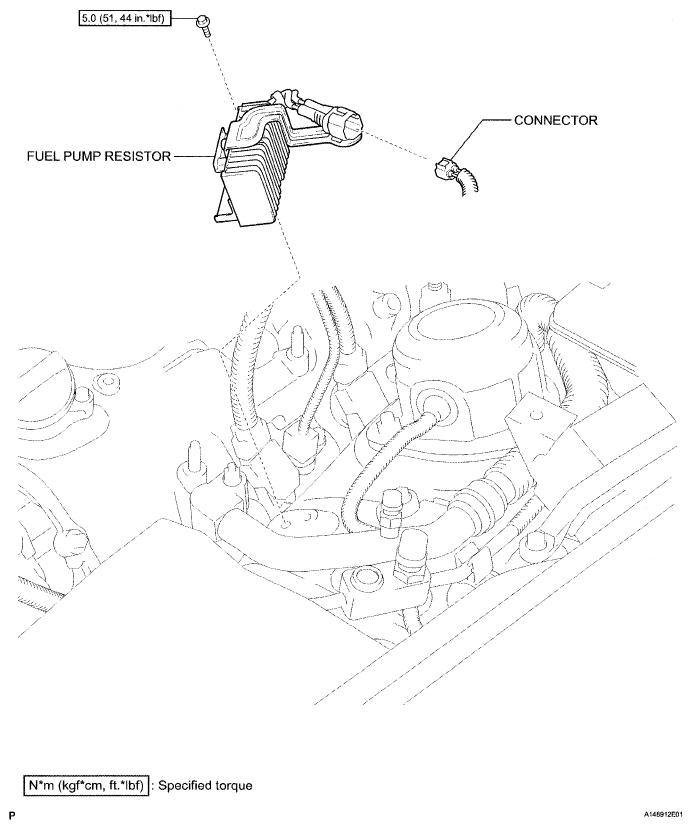

Fig 2: Fuel Pump Resistor Replacement Components With Torque Specifications (2 Of 2)
G04948077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
