Fuel Tank: Components

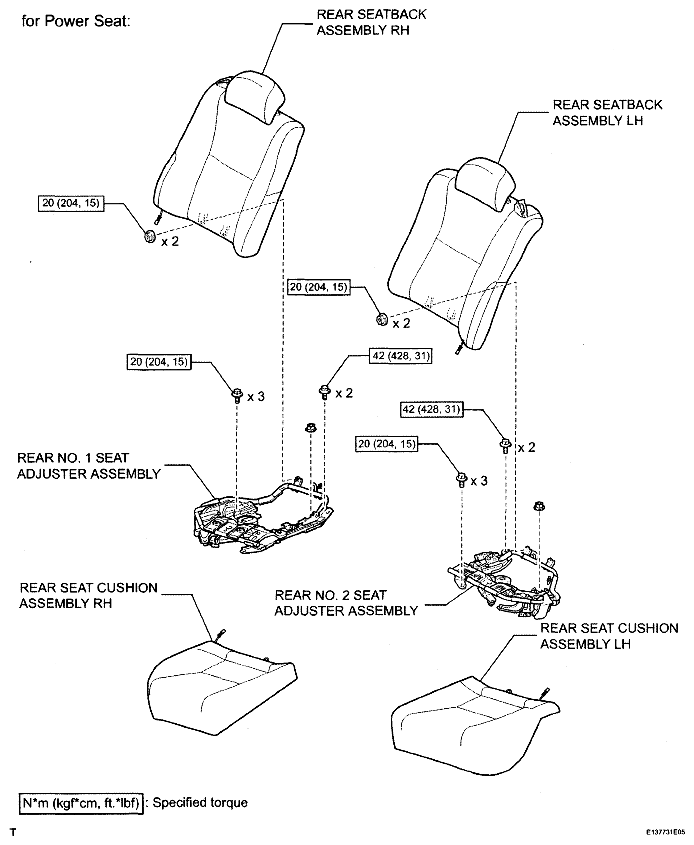

Fig 1: Fuel Tank Replacement Components With Torque Specifications - For Power Seat (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

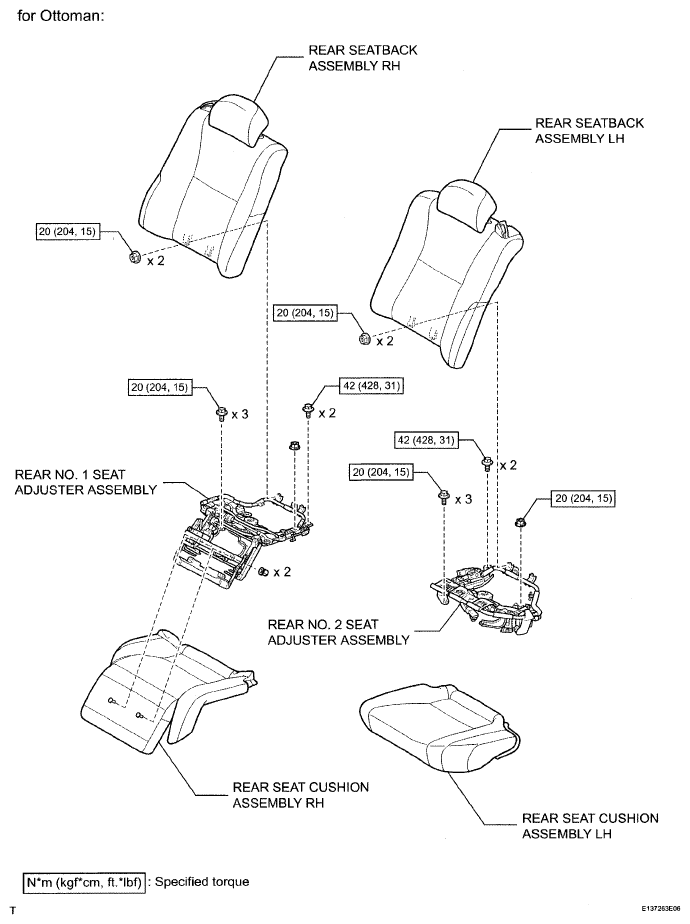

Fig 2: Fuel Tank Replacement Components With Torque Specifications - For Ottoman (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

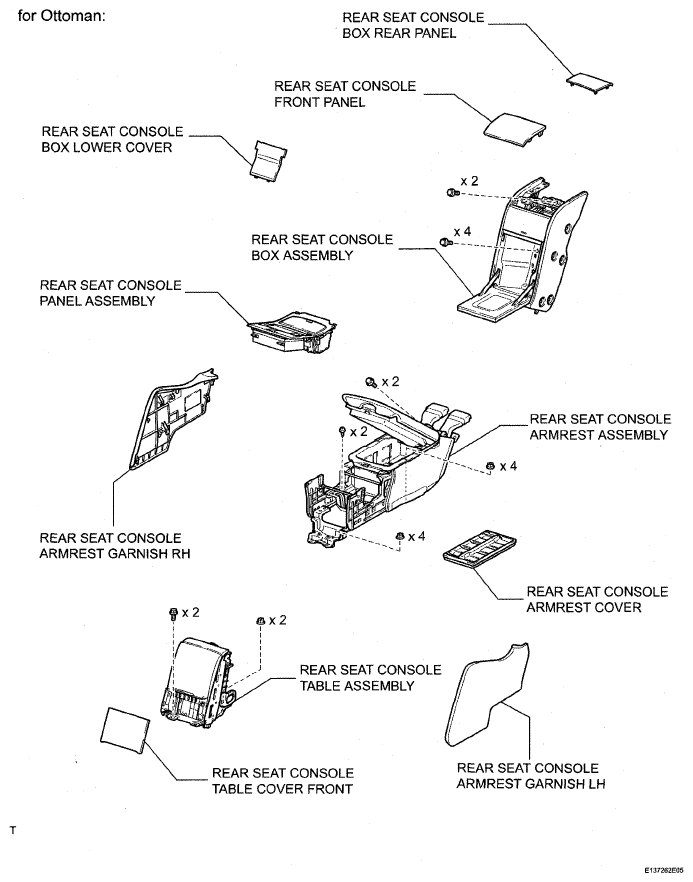

Fig 3: Fuel Tank Replacement Components With Torque Specifications - For Ottoman (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Fuel Tank Components - For Fixed Seat Type (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

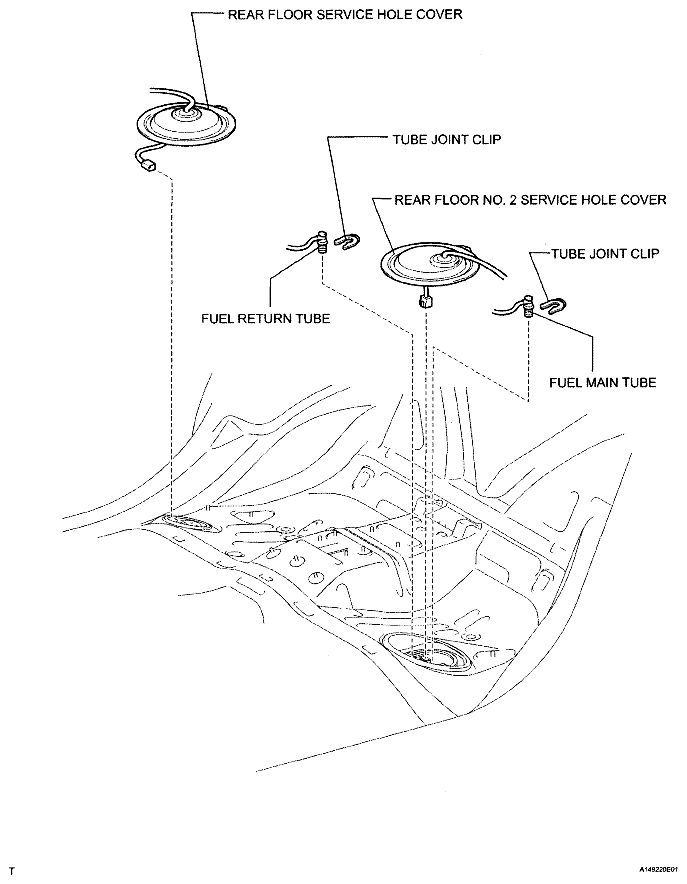

Fig 5: Identifying Fuel Tank Components (5 Of 7)

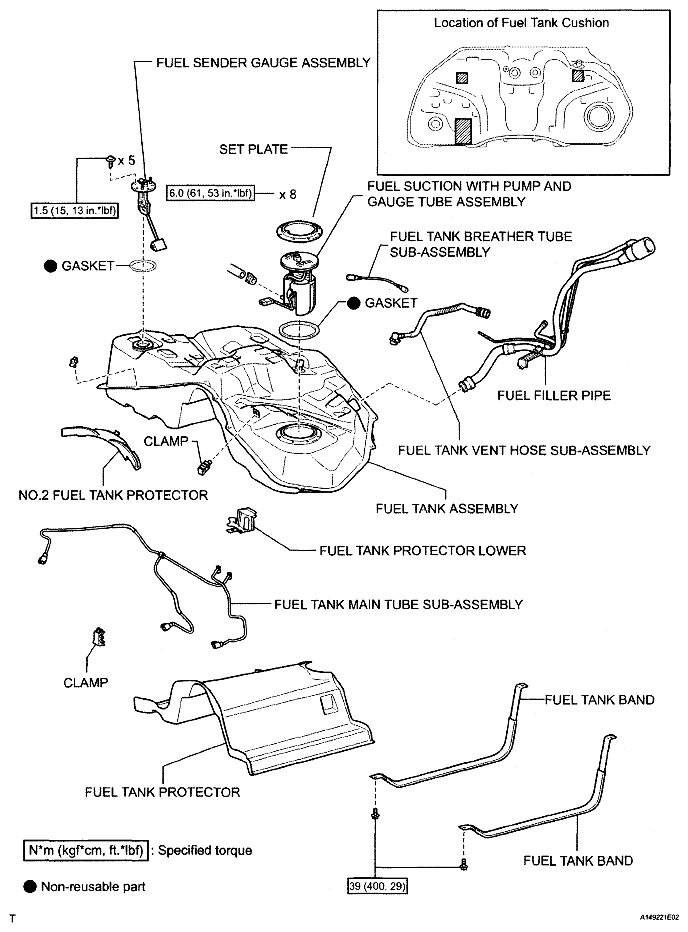

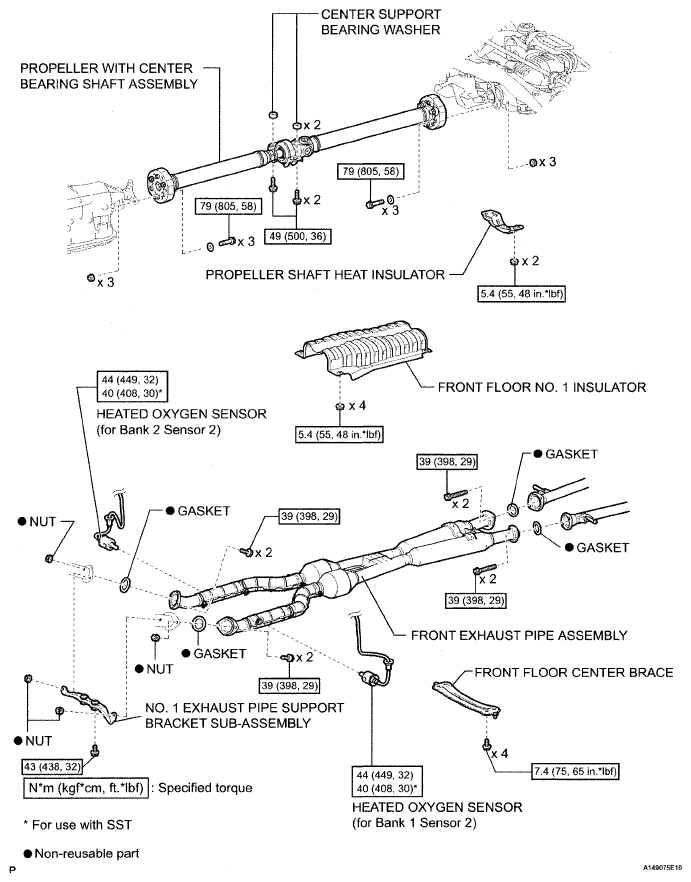

Fig 6: Fuel Tank Replacement Components With Torque Specifications (6 Of 7)

Fig 7: Fuel Tank Replacement Components With Torque Specifications (7 Of 7)
