TCM Power Source Circuit: Wiring Diagram

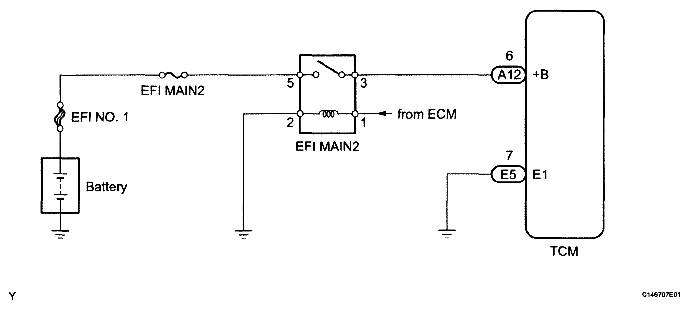

Fig 1: TCM Power Source - Wiring Diagram

G04948385

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
