Floor Shift Assembly: Components

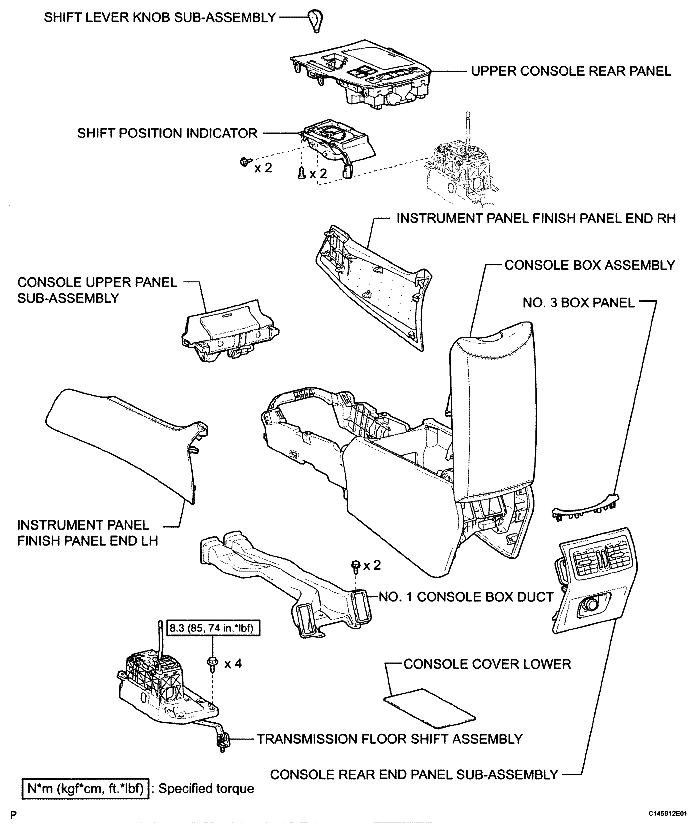

Fig 1: Floor Shift Assembly Replacement Components With Torque Specifications (1 Of 2)
G04948526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Floor Shift Assembly Replacement Components With Torque Specifications (2 Of 2)
G04948527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
