Parts Location

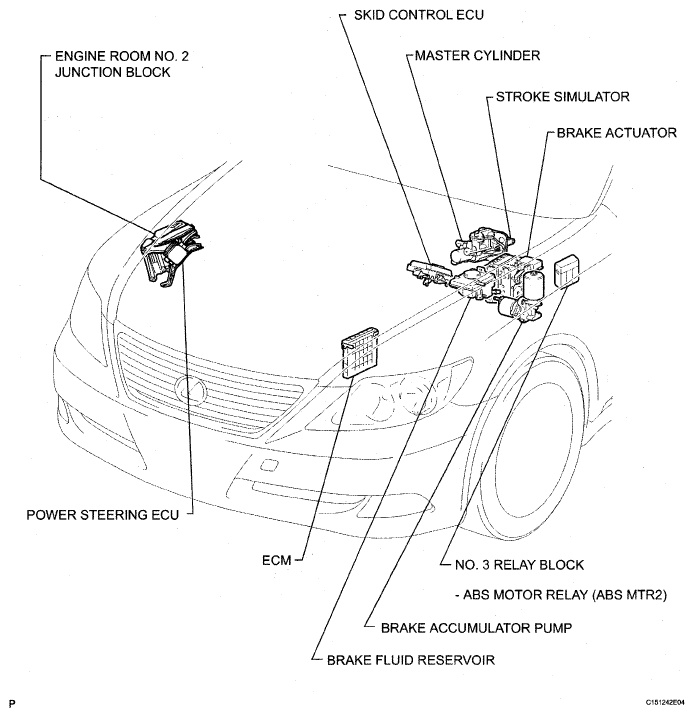

Fig 1: Identifying Electric Components Location (1 Of 4)
G04949541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

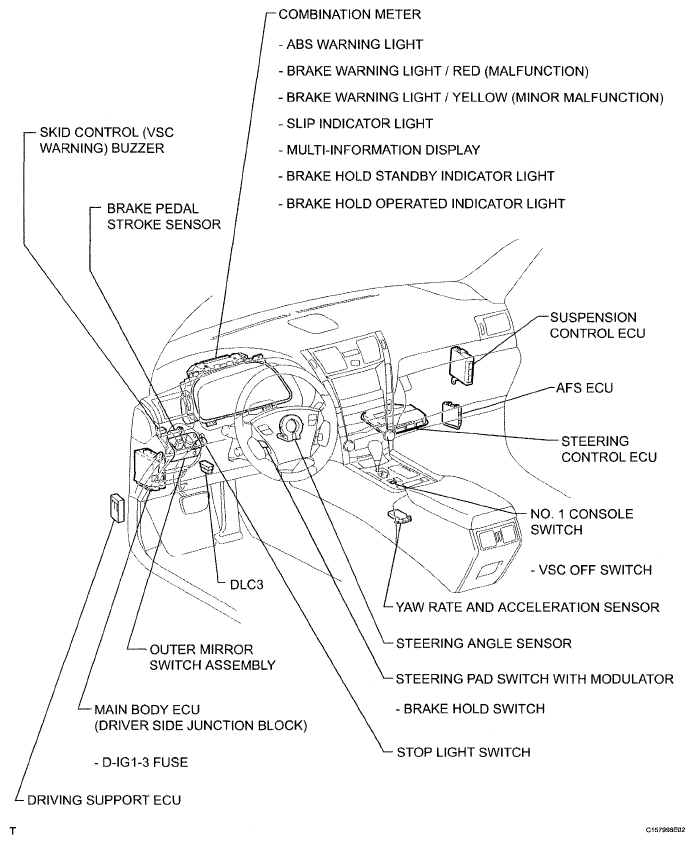

Fig 2: Identifying Electric Components Location (2 Of 4)
G04949542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

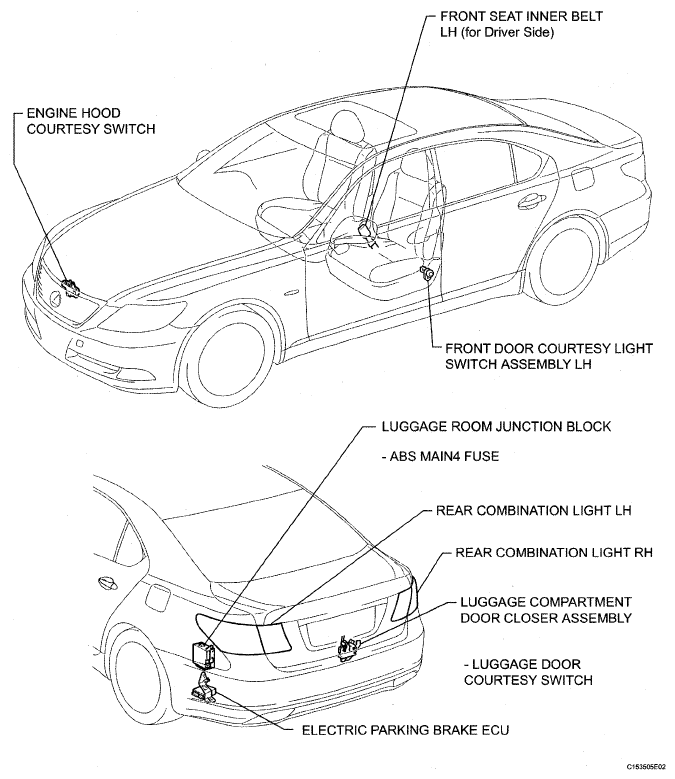

Fig 3: Identifying Electric Components Location (3 Of 4)
G04949543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

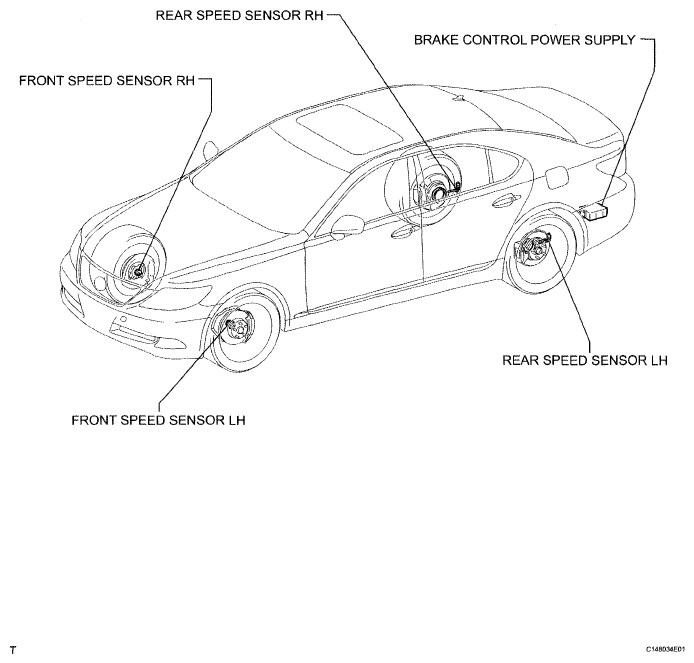

Fig 4: Identifying Electric Components Location (4 Of 4)
G04949544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
