Home >> Lexus >> 2007 >> LS 460L >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control >> Electronically Controlled Brake System >> Slip Indicator Light Circuit >> Wiring Diagram

Slip Indicator Light Circuit: Wiring Diagram

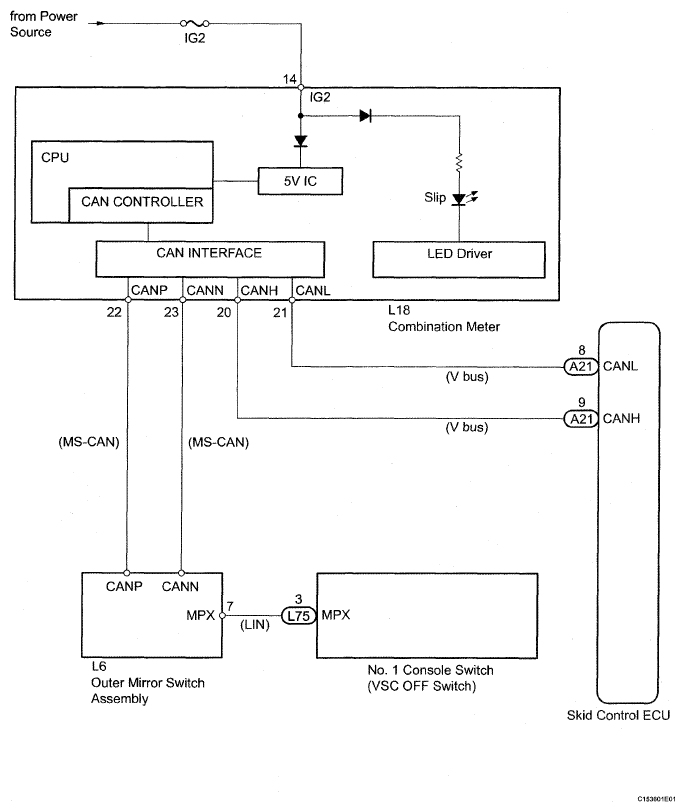

Fig 1: Slip Indicator Light Circuit - Wiring Diagram

G04949678

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
