Home >> Lexus >> 2007 >> RX 350 AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control System >> ECM >> Components

Engine Control System: ECM: Components

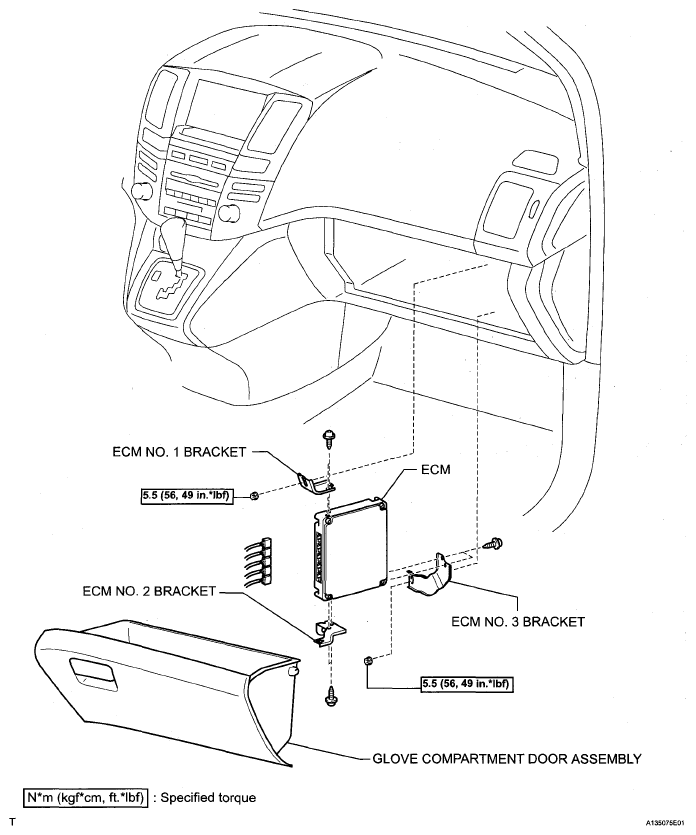

Fig 1: ECM Replacement Components With Torque Specifications
G05268343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
