Home >> Lexus >> 2007 >> RX 350 AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control System >> Knock Sensor >> Components

Knock Sensor: Components

Fig 1: Camshaft Timing Oil Control Valve Assembly Replacement Components With Torque Specifications (2 Of 3)
G05268270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Camshaft Timing Oil Control Valve Assembly Replacement Components With Torque Specifications (1 Of 3)
G05268269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

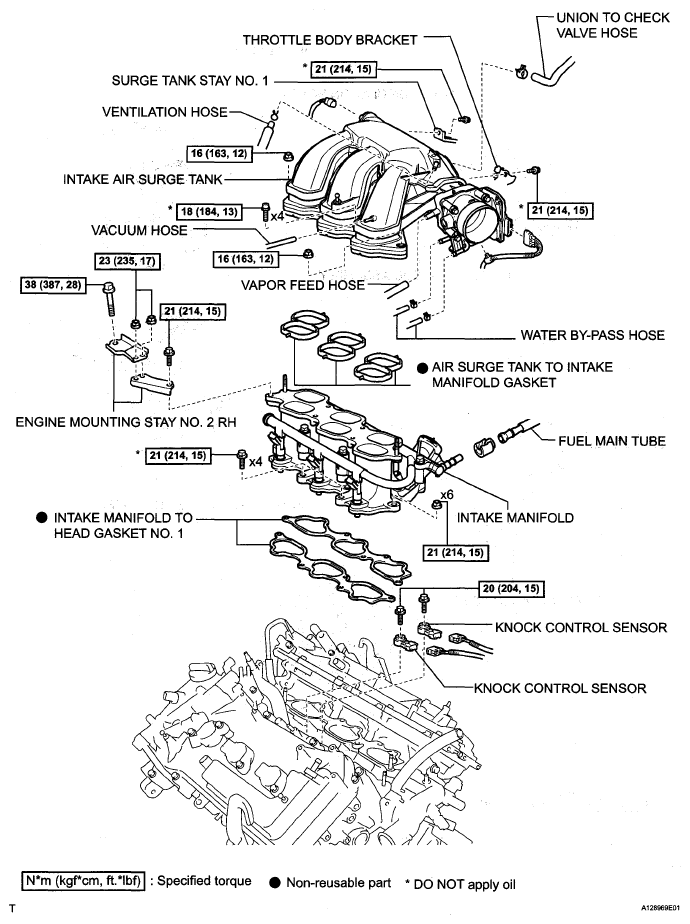

Fig 3: Knock Sensor Replacement Components With Torque Specifications (3 Of 3)
G05268329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
