Active Control Engine Mount System: Wiring Diagram

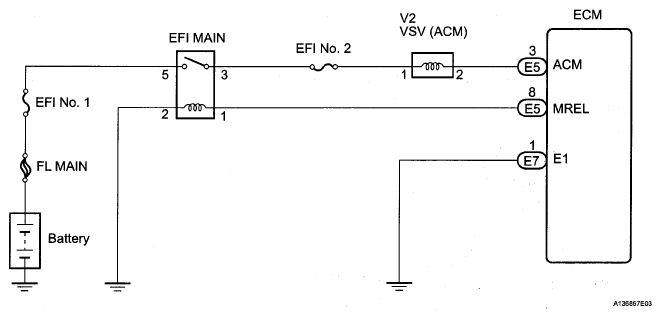

Fig 1: Active Control Engine Mount (ACM) System - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
