Fuel Pump Control Circuit: Wiring Diagram

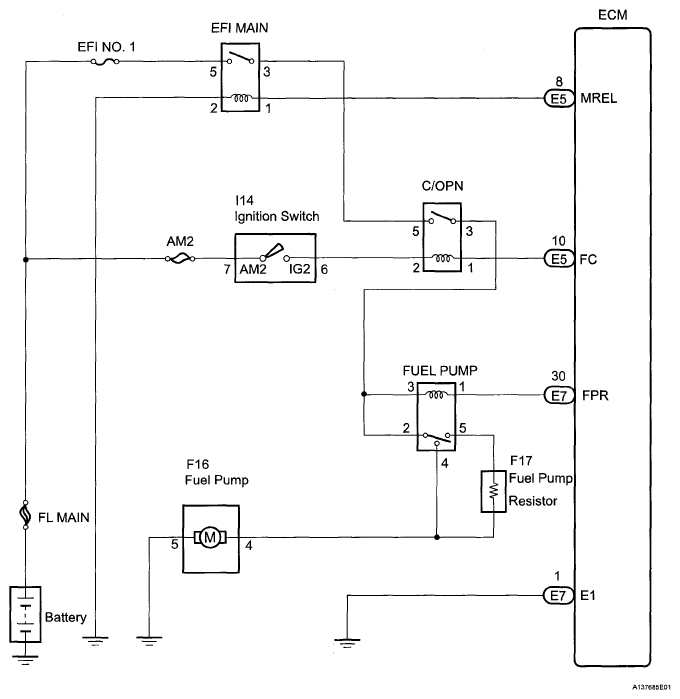

Fig 1: Fuel Pump Control Circuit - Wiring Diagram

G05268067

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
