IACV Control Circuit: Wiring Diagram

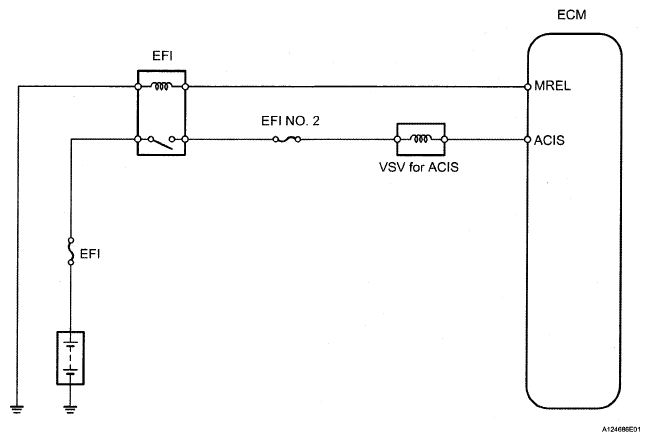

Fig 1: IACV Control Circuit - Wiring Diagram

G05291558

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
