Home >> Lexus >> 2007 >> SC 430 >> Repair and Diagnosis >> Engine Performance >> Engine Control System >> Throttle Body >> Components

Throttle Body: Components

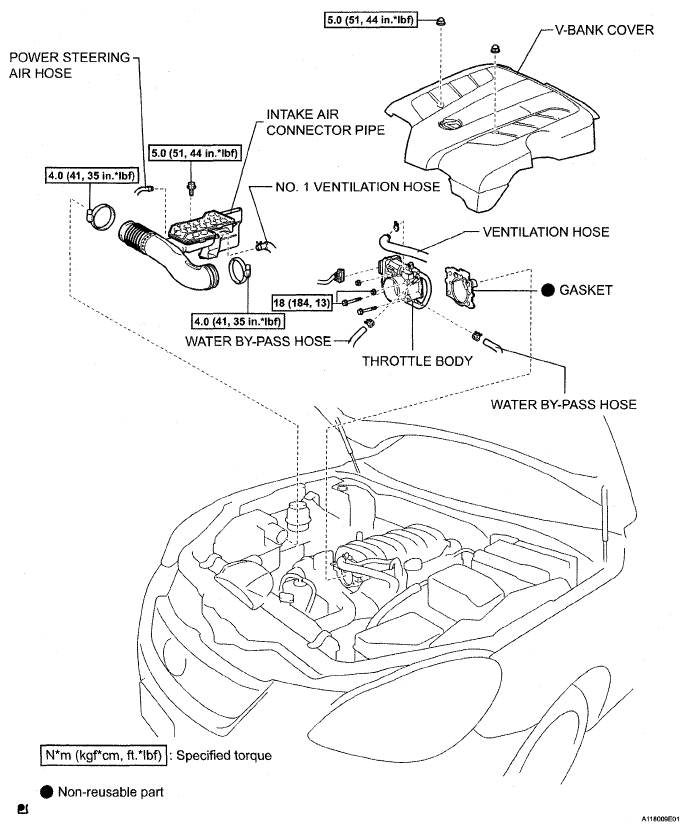

Fig 1: Throttle Body Replacement Components With Torque Specifications
G05291600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
