Home >> Lexus >> 2007 >> SC 430 >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel >> Fuel Pump >> Components

Fuel Pump: Components

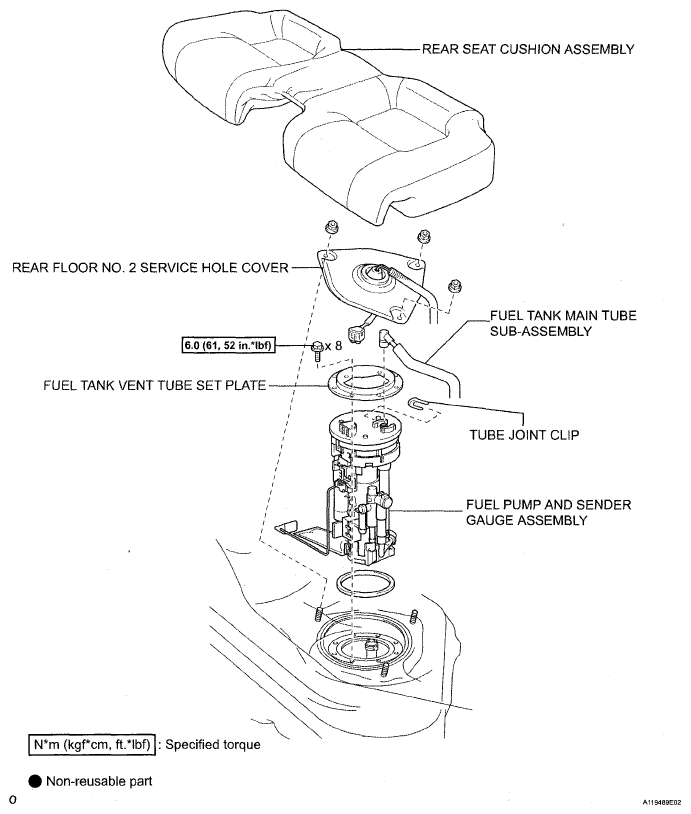

Fig 1: Fuel Pump Replacement Components With Torque Specifications (1 Of 2)
G05289183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

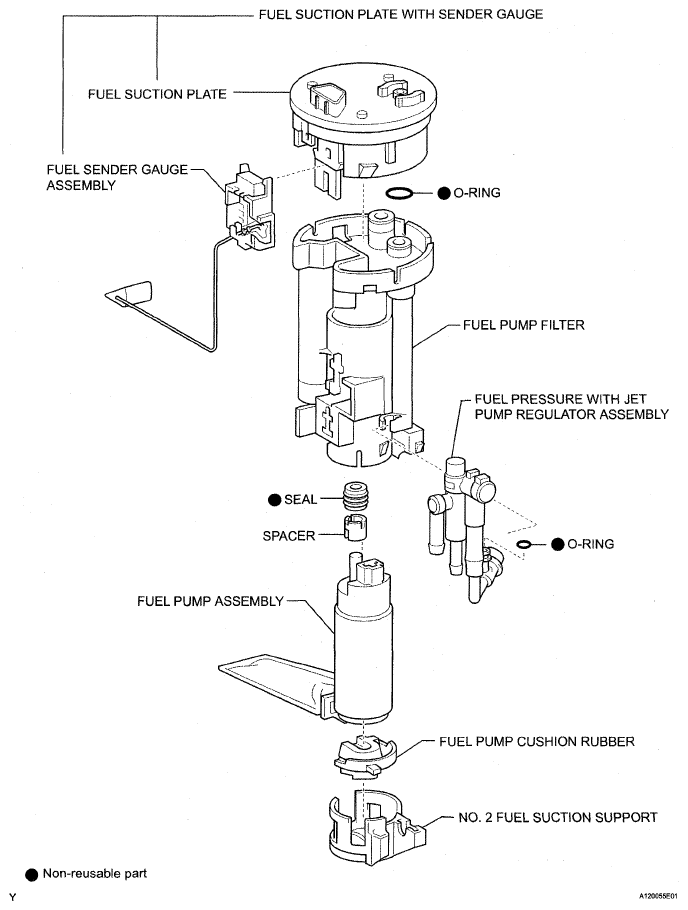

Fig 2: Fuel Pump Replacement Components With Torque Specifications (2 Of 2)
G05289184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
