Home >> Lexus >> 2008 >> ES 350 >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel >> Fuel Injector >> Components

Fuel Injector: Components

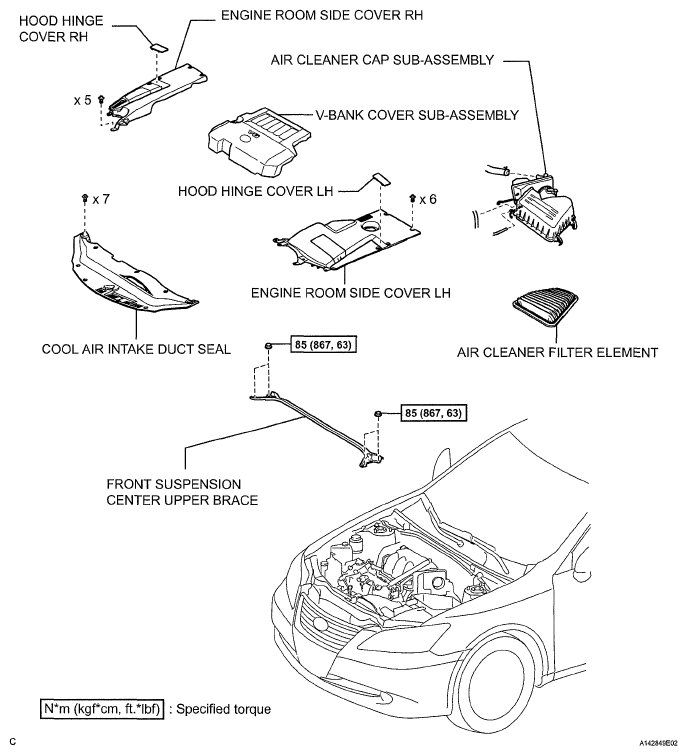

Fig 1: Identifying Fuel Injector Replacement Components With Torque Specifications (1 Of 3)
G05835735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Fuel Injector Replacement Components With Torque Specifications (2 Of 3)
G04975000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

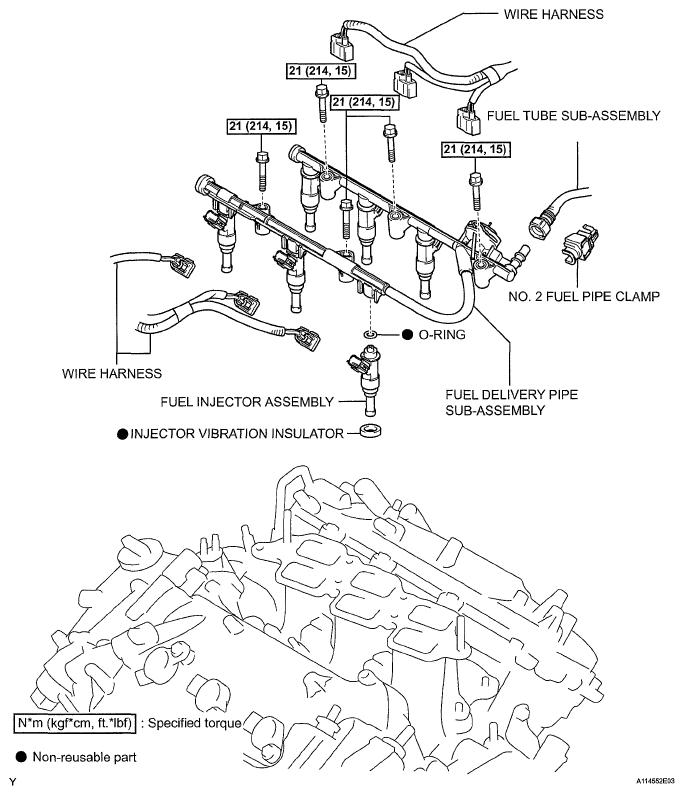

Fig 3: Identifying Fuel Injector Replacement Components With Torque Specifications (3 Of 3)
G05835737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
