Fuel Tank: Components

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (1 Of 3)
G05248518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

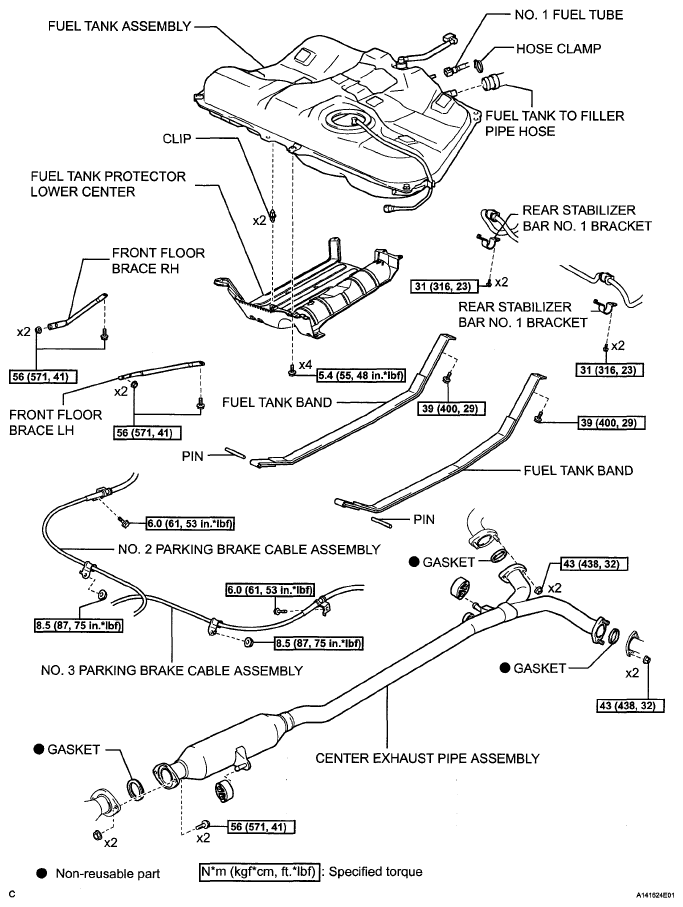

Fig 2: Identifying Fuel Tank Replacement Components With Torque Specifications (2 Of 3)
G05248546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

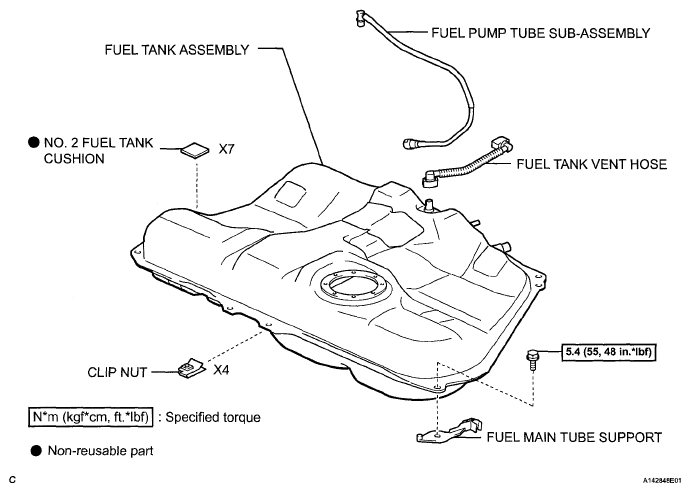

Fig 3: Identifying Fuel Tank Replacement Components With Torque Specifications (3 Of 3)
G05248547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
