Engine Control System - Diagnostic Introduction
>>
SFI System
>>
Parts Location
Parts Location

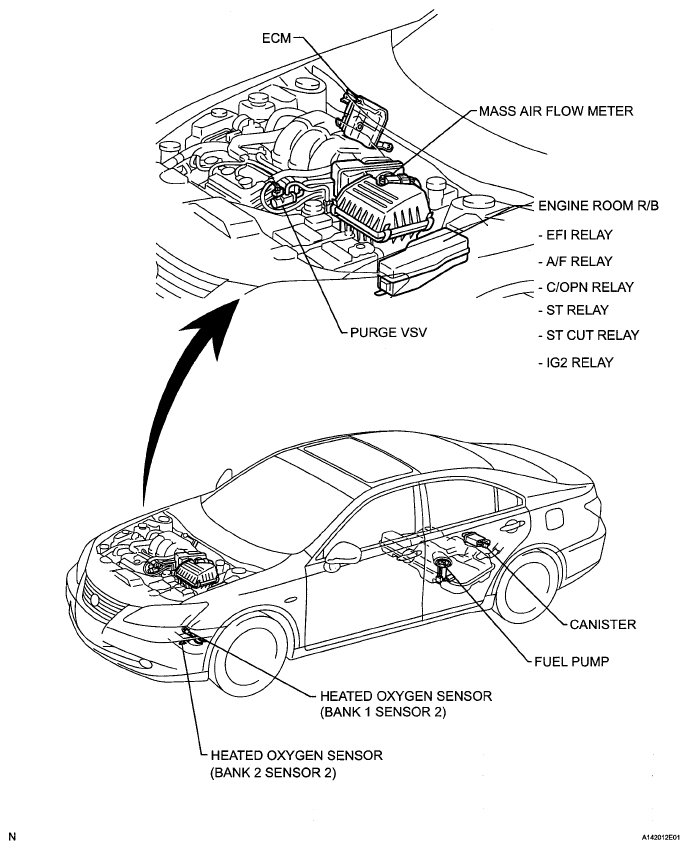

Fig 1: Identifying Engine Control System Components Location (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

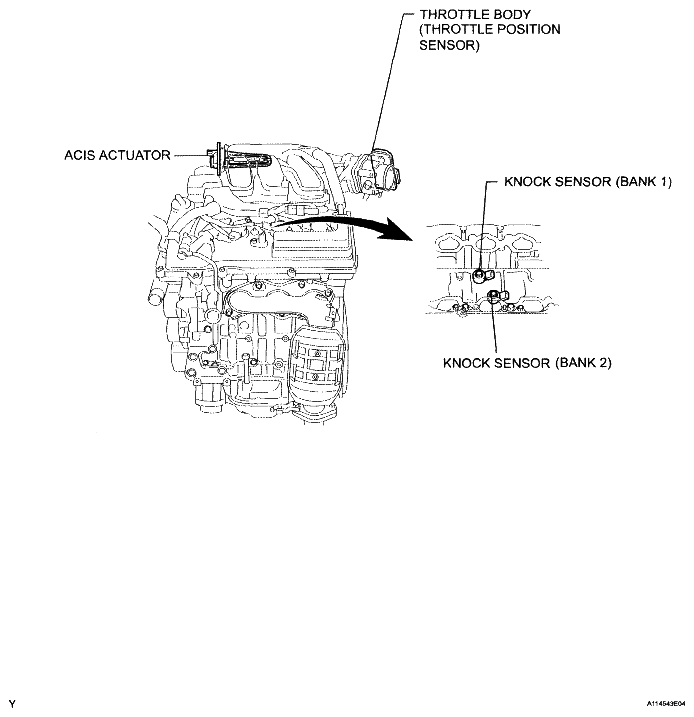

Fig 2: Identifying Engine Control System Components Location (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

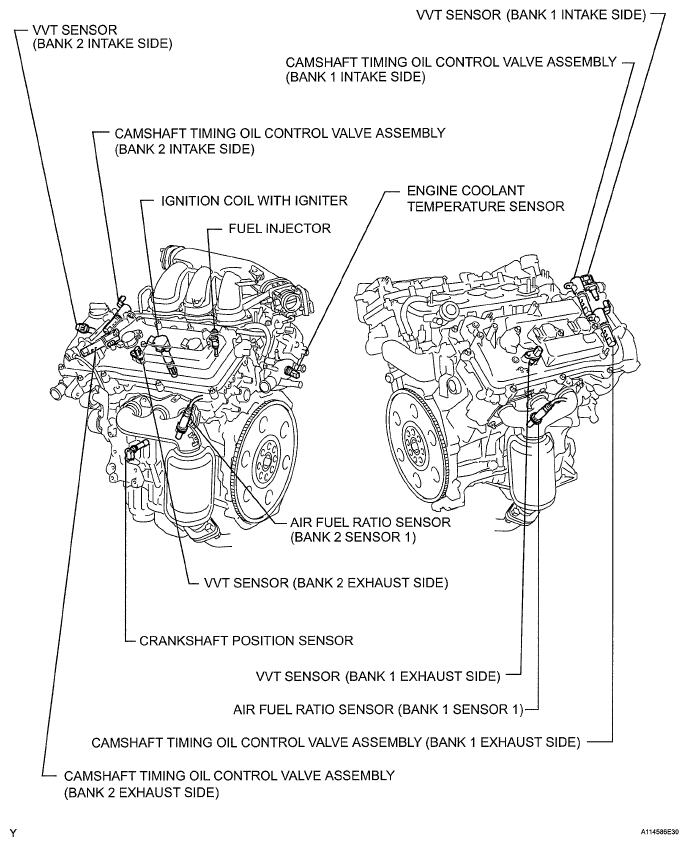

Fig 3: Identifying Engine Control System Components Location (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

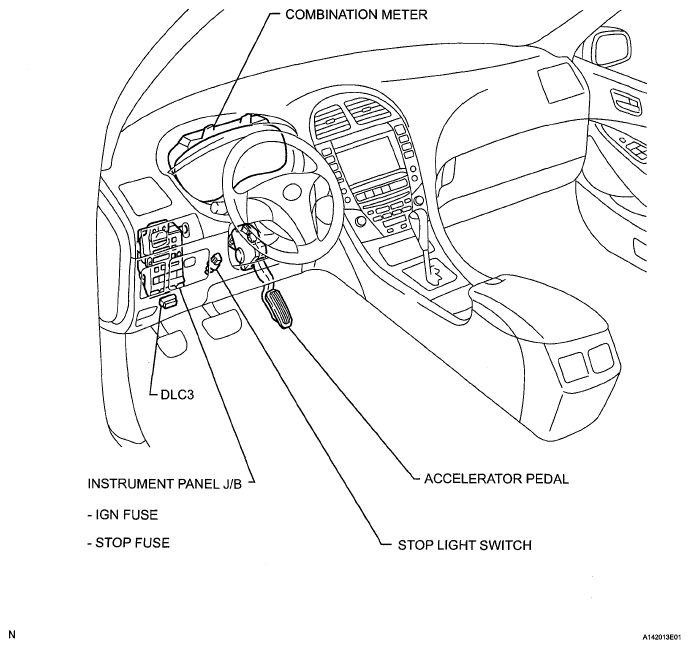

Fig 4: Identifying Engine Control System Components Location (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
