Cranking Holding Function Circuit: Wiring Diagram

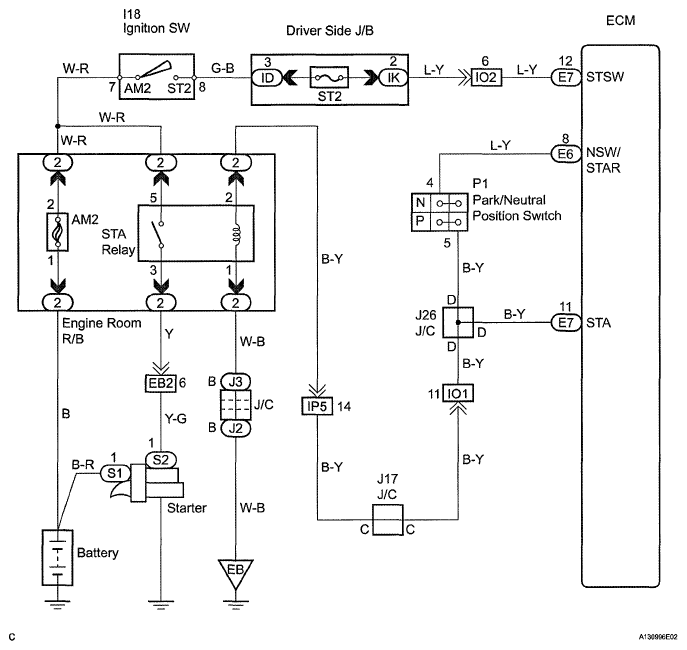

Fig 1: Starter Wiring Diagram

G05843764

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
