Home >> Lexus >> 2008 >> GX 470 >> Repair and Diagnosis >> Engine Performance >> Engine Control System >> Throttle Body >> Components

Throttle Body: Components

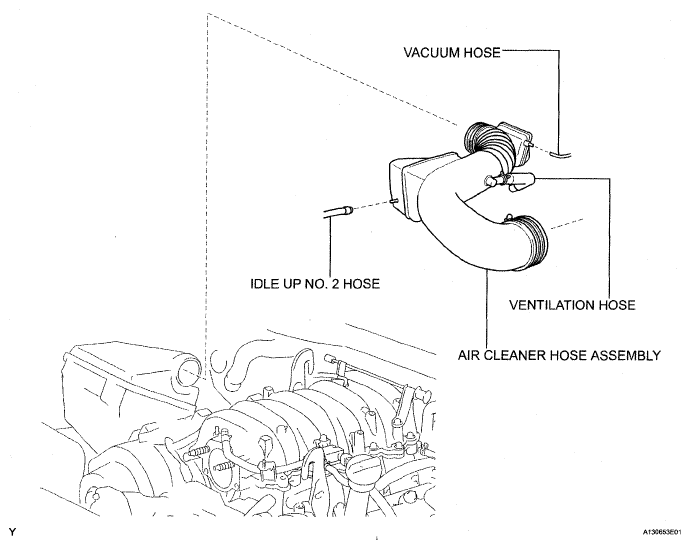

Fig 1: Identifying Throttle Body Components (1 Of 2)
G05264321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

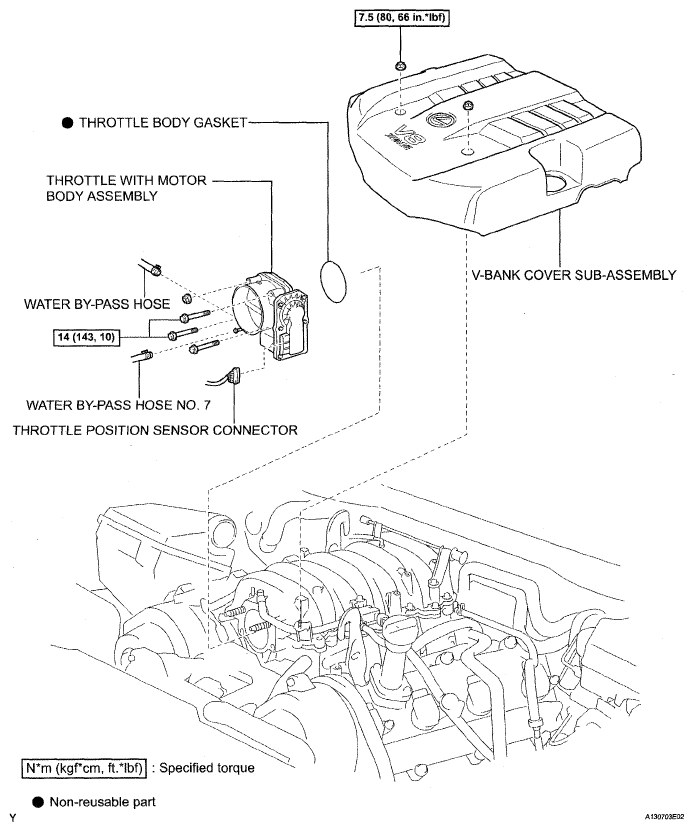

Fig 2: Identifying Throttle Body Components (2 Of 2)
G05264322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
