System Description

OUTLINE OF THE COMBINATION METER

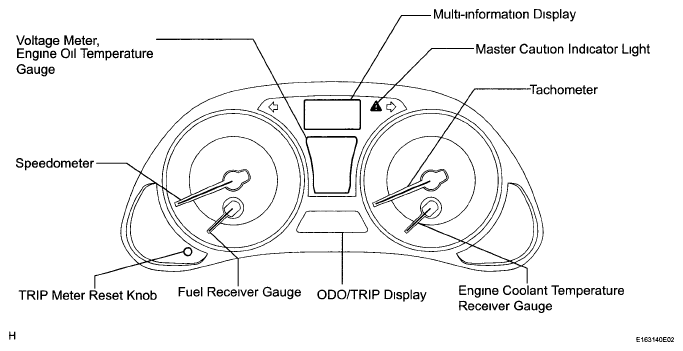

Fig 1: Identifying Combination Meter Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Meter/Gauge

ITEM DETAIL CHART

Item	Detail
Speedometer	Indicates the vehicle speed based on a signal received from the Skid Control ECU (Direct Line)
Tachometer	Indicates the engine speed based on a signal received from the ECM (Direct Line)
Fuel gauge	Indicates the fuel level based on a fuel level signal received from the fuel sender gauge (main and sub) (Direct Line) and a fuel injection signal and an ST signal from the ECM (CAN-BEAN)
Engine coolant temperature receiver gauge	Indicates the engine coolant temperature based on a signal received from the ECM (CAN-BEAN)
Engine oil temperature gauge	Indicates the engine oil temperature based on a signal received from the engine oil temperature sensor (Direct Line)
Voltage meter	Indicates the battery voltage based on the power source voltage supplied to the meter CPU (Direct Line)

Warning/Indicator

ITEM DETAIL CHART

Item

Detail

Turn

Receives a turn signal from the turn signal flasher (Direct Line)

Beam

Receives a beam signal from the main body ECU RH (Cowl Side Junction Block RH) (BEAN)

Charge

Receives a charge signal from the ECM (CAN-BEAN)

MIL (Check engine)

Receives a MIL (check engine indicator light) signal from the ECM (Direct Line)

Door

Open door indicator light comes on receiving a door condition signal from the main body ECU RH (Cowl Side Junction Block RH) (BEAN)

Driver side seat belt

Receives a driver side seat belt signal from the center airbag sensor assembly (CAN-BEAN)

Front passenger side seat belt

Receives a front passenger side seat belt signal from the center airbag sensor assembly (CAN-BEAN) and transmits a front passenger side seat belt condition signal to the integration control and panel assembly⁽¹⁾ or multi-display⁽²⁾ (Direct Line)

Head⁽³⁾ or Tail⁽⁴⁾

Receives a headlight or taillight signal from the main body ECU RH (Cowl Side Junction Block RH) (BEAN)

A/T shift

Receives an A/T shift condition signal from the park/neutral position switch and the ECM (CAN-BEAN)

Sport

Receives a sport signal from the ECM (CAN-BEAN)

Snow

Receives a snow signal from the ECM (CAN-BEAN)

A/T fluid temperature

Receives an A/T fluid temperature signal from the ECM (CAN-BEAN)

Fuel

Receives a fuel signal from the fuel sender gauges (main and sub) (Direct Line)

ABS

Receives an ABS signal from the skid control ECU (CAN-BEAN)

Slip

Receives a SLIP signal from the skid control ECU (CAN-BEAN)

Brake

Receives a BRAKE signal from the skid control ECU (CAN-BEAN)

VSC OFF

Receives a VSC OFF signal from the skid control ECU (CAN-BEAN)

Cruise

Receives a cruise signal from the ECM (CAN-BEAN)

Airbag

Receives an airbag signal from the center airbag sensor assembly (CAN-BEAN)

AFS OFF

Receives an AFS OFF signal from the AFS ECU (BEAN)

EPS

Receives an EPS signal from the EPS ECU (CAN-BEAN)

Tire pressure

Receives a tire pressure signal from the tire pressure warning ECU (BEAN)

PCS⁽⁵⁾

Receives a PCS signal from the seat belt control ECU (CAN-BEAN)

Front fog

Receives a front fog signal from the main body ECU RH (Cowl side junction block ECU RH) (BEAN)

Sonar

Receives a sonar signal from the clearance warning ECU (BEAN)

Master

Master caution indicator light comes on when the warning display appears or the oil maintenance resetting procedure has finished

⁽¹⁾	w/o Navigation System

⁽²⁾	w/ Navigation System

⁽³⁾

for U S A

⁽⁴⁾	for Canada

⁽⁵⁾	w/ Pre-collision System

Multi-information Display

HINT

The multi-information display is located in the upper center of the combination meter
The display shows a message or animation for each of the functions described in the table below

ITEM DETAIL CHART

Item

Detail

Cruise information display

Outside temperature

Seven types of information (outside temperature, average fuel consumption, average fuel consumption after refueling, average vehicle speed, possible running distance, instant fuel consumption, and A/T shift position) can be displayed The display can be switched by using the DISP switch

Average fuel consumption

Average fuel consumption after refueling

Average vehicle speed

Possible running distance

Instant fuel consumption

A/T shift position

Warning display

Door warning

Interrupts the multi-information display immediately when a warning occurs

Each system warning

Satellite switch

In the satellite switch mode, 3 functions (Sonar ON/OFF⁽¹⁾, Tire pressure Initial/Tire select Main/2nd, AFS ON/OFF) can be displayed
The function can be changed using the satellite switch (RH switch, ON/OFF switch, LH switch)

Dynamic Radar Cruise Display⁽²⁾

Displays the operating condition of the dynamic radar cruise control

Parking Assist-sensor Display⁽¹⁾

Displays the location of an obstacle and the approximate distance between the vehicle and the obstacle and displays malfunction warning messages about sensor freezing or presence of dirt on the sensors

DTC (Diagnostic Trouble Code) display

Displays 2 digit DTCs pertaining to the VSC and tire pressure function

⁽¹⁾	w/ Intuitive Parking Assist System

⁽²⁾	w/ Dynamic Radar Cruise Control System

ODO/TRIP Display

ODO/TRIP DISPLAY

Item

Display

Oil maintenance reminder⁽¹⁾

An oil maintenance reminder Indication will display to inform the driver to change the engine oil depending on the vehicle driving distance and to perform the oil maintenance reminder resetting procedure
Displays the mode while in the oil maintenance reminder reset procedure

ODO/TRIP display

This display switches between odometer, trip meter A, and trip meter B in accordance with the operation of the TRIP meter reset knob

⁽¹⁾

for U S A

MULTI-INFORMATION DISPLAY FLOW CHART
1. Multi-information display flow chart

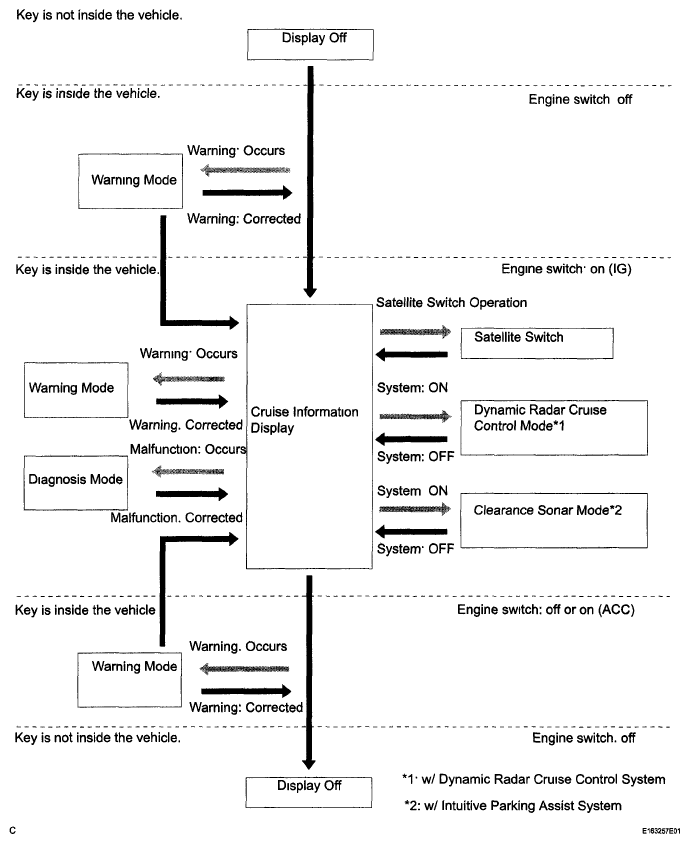

  Fig 2: Multi-Information Display Flow Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Each warning indication in English
  HINT

  Illustrations may differ from the actual screen displayed depending on the specifications of the vehicle.

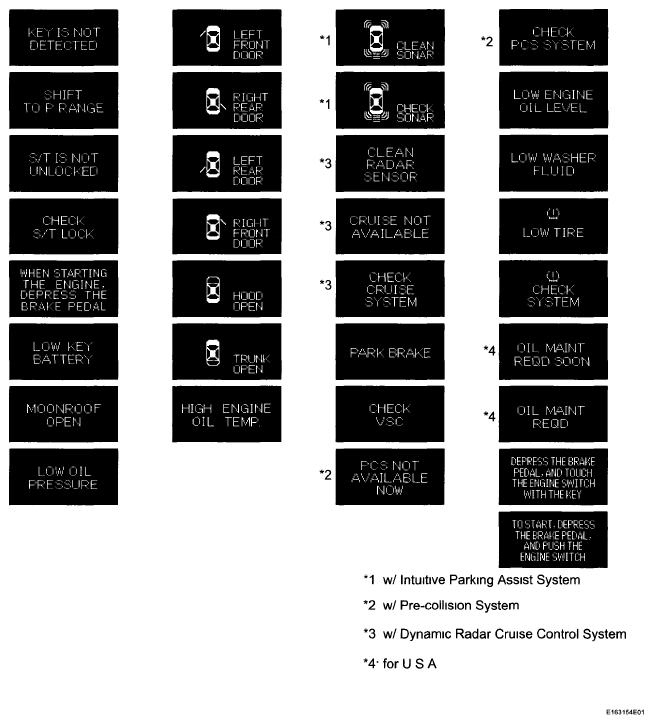

  Fig 3: Warning Indication Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Each warning indication in French
  HINT

  Illustrations may differ from the actual screen displayed depending on the specifications of the vehicle

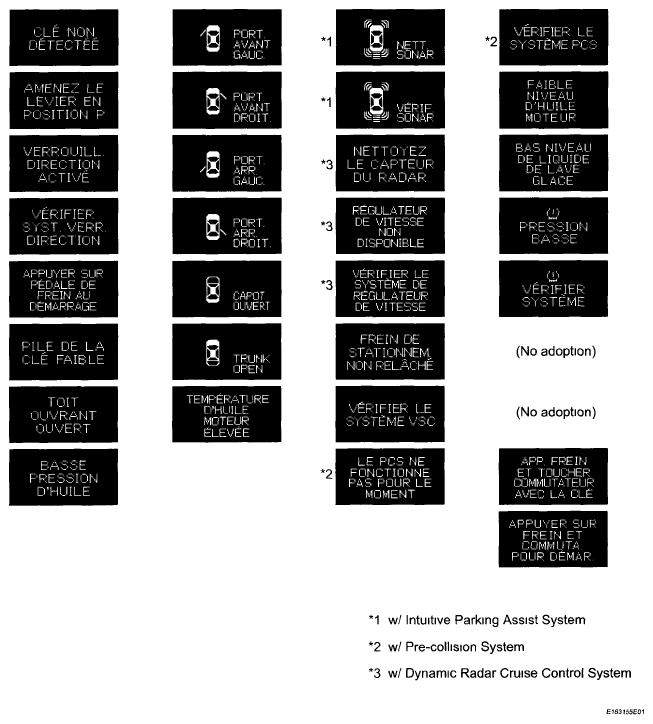

  Fig 4: Warning Indication Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
VOLTAGE METER

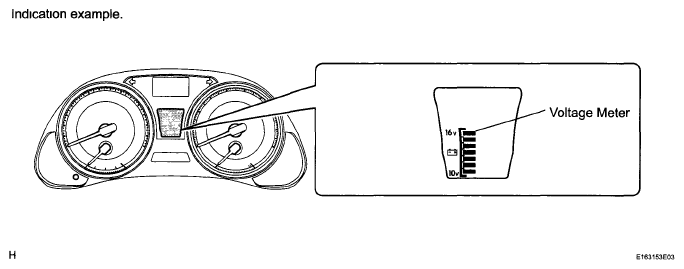

Fig 5: Identifying Voltage Meter
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. The voltage meter displays the battery voltage using one bar If the battery voltage is too low (below 10 V), the first bar will blink to inform the driver If the voltage is too high (17 V or higher), the seventh bar will blink. When turning the engine switch on (IG), the meter CPU determines the battery voltage based on the power source voltage supplied to it
ENGINE OIL TEMPERATURE GAUGE

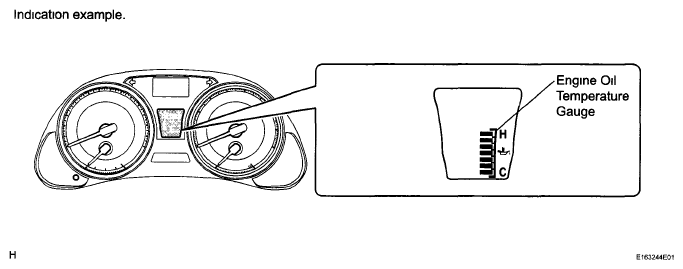

Fig 6: Identifying Engine Oil Temperature Gauge
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. The meter CPU uses the engine oil temperature sensor to determine the temperature of the engine oil. The resistance of the engine oil temperature sensor will vary between approximately 30 kΩ or higher with the engine oil temperature is 0°C (32°F), and approximately 0.3 kΩ with the engine oil temperature is 155°C (311°F). Voltage measured at this point will vary as the engine temperature is changed
  The engine oil temperature gauge displays the engine oil temperature using seven bars The meter CPU calculates the engine oil temperature based on signals from the engine oil temperature sensor via the direct line When the engine oil temperature becomes 140°C (284°F) or higher, all the bars blink and the warning message is displayed in the multi-information display.

  HINT.
  - If the circuit is open, the lowest bar blinks.
  - If the circuit is shorted, all the bars blink and engine oil temperature warning light comes on.
DIAGNOSIS SYSTEM
1. Display example for English

  Fig 7: Screen Display Diagnosis System - English
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Display example for French

  Fig 8: Screen Display Diagnosis System - French
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. The combination meter indicates diagnosis mode by blinking the warning light or the warning message in the multi-information display
  HINT
  - The multi-information display shows "DIAG" when the engine switch is on (IG) (See TEST MODE PROCEDURE )
  - Diagnosis information can be displayed on the multi-information display after connecting a jumper wire between TC (J21-13) and CG (J21-4) of the DLC3 connector
SATELLITE SWITCH
1. By using the satellite switch (RH switch, ON/OFF switch, LH switch), 3 different switch functions can be displayed and changed (Tire pressure, Sonar*, AFS)
  - * w/ Intuitive Parking Assist System
  HINT
  - When the engine switch on (IG) while driving at 3 mph (5 km/h) or less, the switch except for SONAR can be displayed as shown in the illustration below
  - The switch functions displayed are changed in the order shown in the illustration using the satellite switch (RH switch, LH switch) The function can be set using the ON/OFF switch
  - The display automatically returns to the previous display 6 seconds after the satellite switch is operated It will return to the previous display immediately if the DISP switch is operated

    Fig 9: Identifying Satellite Switch
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Display example for English

    Fig 10: Screen Display Disp Switch - English
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Display example for French

LED INITIAL CHECK

The illumination function of the warning, indicator, or reminder light listed below can be confirmed when turn the engine switch on (IG).

Fig 11: Screen Display Disp Switch - French

INDICATOR OR WARNING LIGHT SPECIFIED CONDITION CHART

Indicator or Warning Light	Specified Condition
Brake, ABS, Slip, EPS, VSC OFF, Tire pressure warning, PCS, A/T fluid temperature, Master caution indicator light	Indicator/Warning light comes on for about 3 seconds after turning the engine switch on (IG).
Airbag	Warning light comes on for about 6 seconds after turning the engine switch on (IG).
Charge	Indicator/Warning light comes on after turning the engine switch on (IG)
MIL (Check engine)	Warning light comes on while turning the engine switch on (IG).
