Home >> Lexus >> 2008 >> IS F >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel >> FUEL INJECTOR (for Port Injection) >> Components

FUEL INJECTOR (for Port Injection): Components

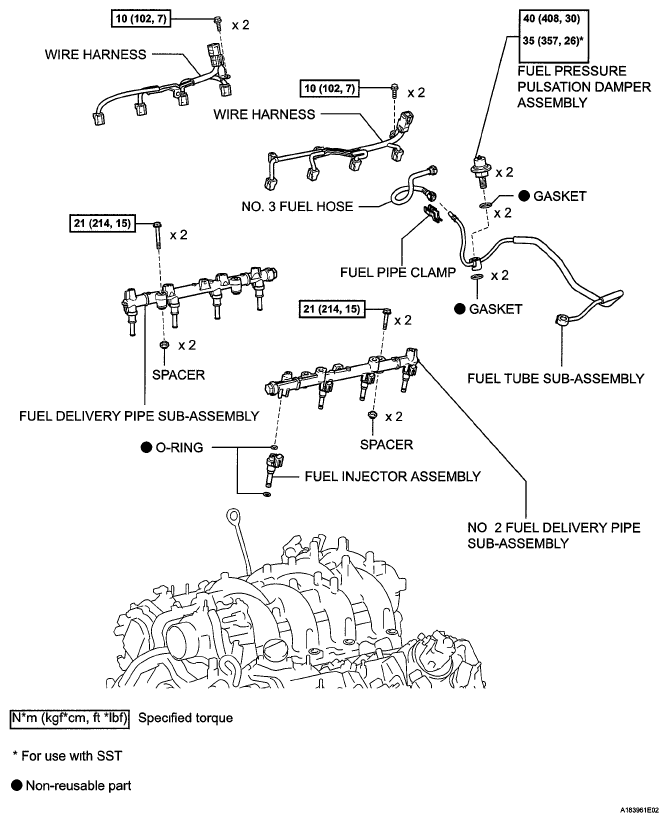

Fig 1: Fuel Injector Replacement Components (For Port Injection) With Torque Specifications

G05749932

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
