Fuel Pressure Sensor: Components

Fig 1: Fuel Pressure Pulsation Damper Replacement Components - For Direct Injection (1 Of 2) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

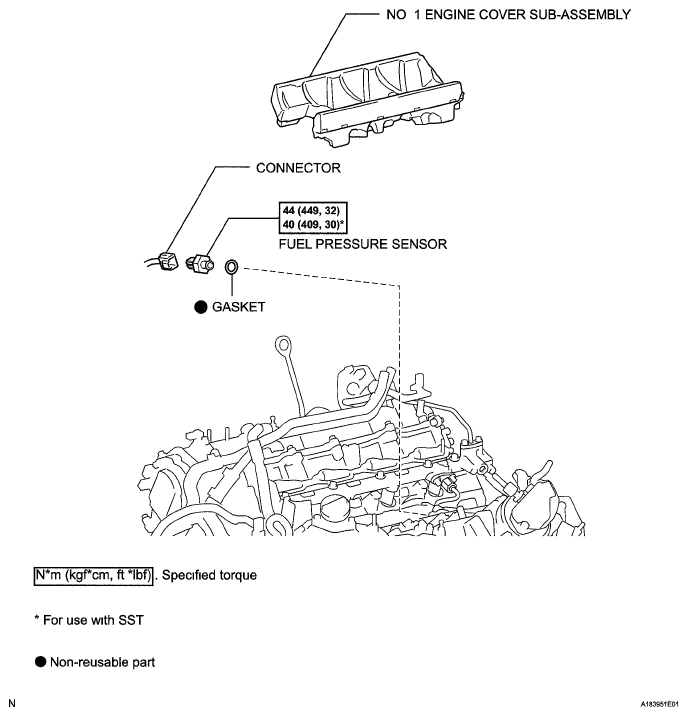

Fig 2: Fuel Pressure Sensor Replacement Components (2 Of 2) With Torque Specifications
