System Diagram

  1. FUEL FLOW DIAGRAM

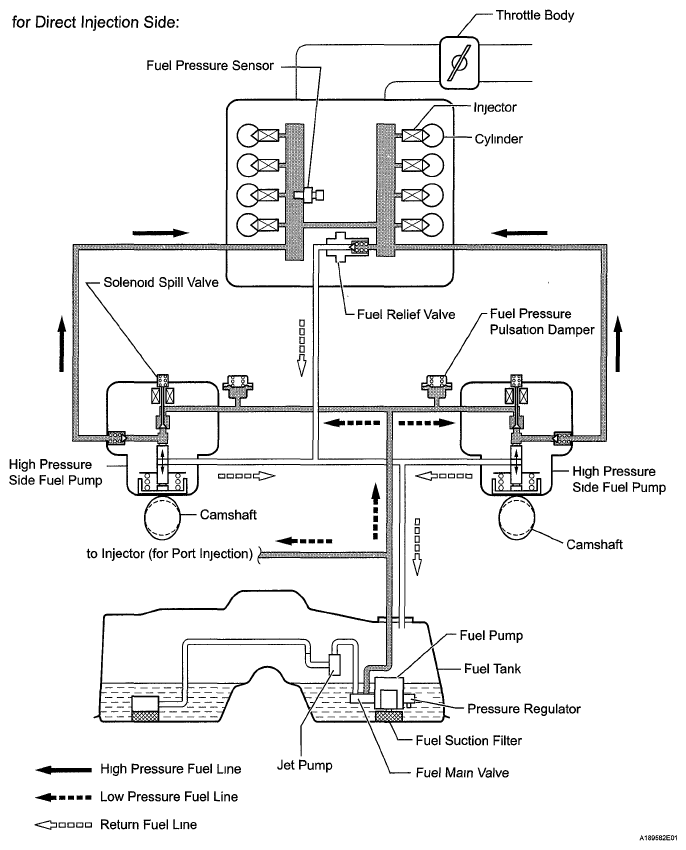

    Fig 1: Fuel Flow Diagram (For Direct Injection Side)
    G05749918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

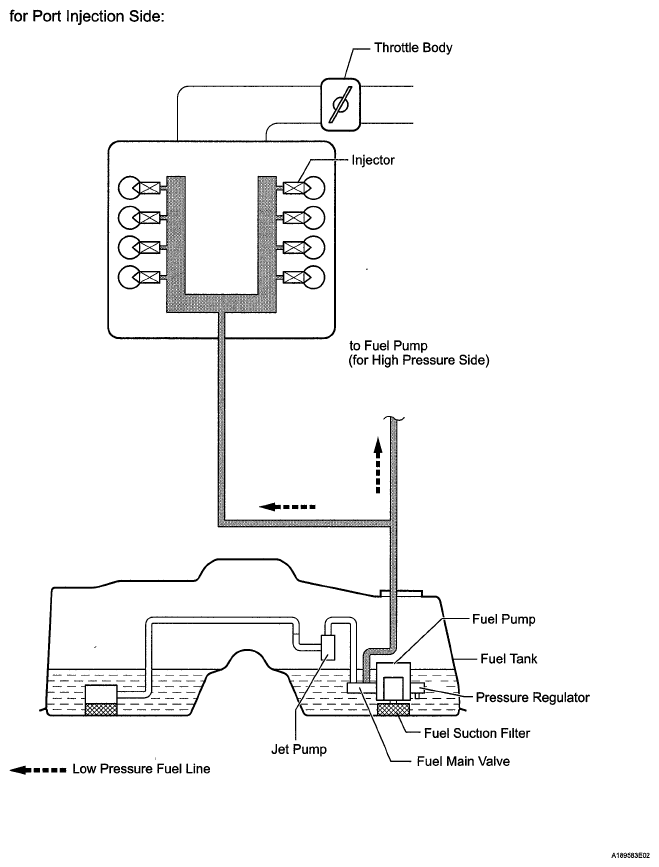

    Fig 2: Fuel Flow Diagram (For Port Injection Side)
    G05749919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ELECTRICAL CONTROL DIAGRAM
    Fig 3: Electrical Control Diagram
    G04947852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. HIGH PRESSURE SIDE (DIRECT INJECTION SIDE) FUEL SYSTEM WIRING DIAGRAM
    Fig 4: High Pressure Side (Direct Injection Side) Fuel System - Wiring Diagram (1 Of 3)
    G05751527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

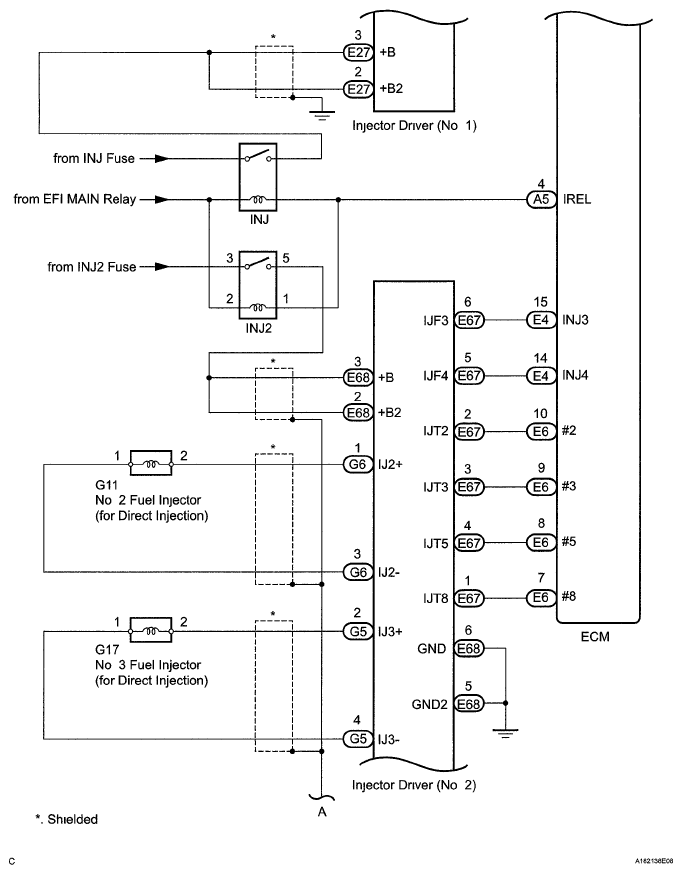

    Fig 5: High Pressure Side (Direct Injection Side) Fuel System - Wiring Diagram (2 Of 3)
    G05751528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

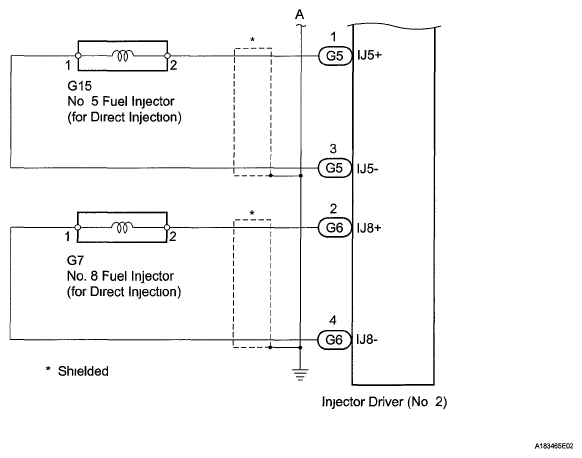

    Fig 6: High Pressure Side (Direct Injection Side) Fuel System - Wiring Diagram (3 Of 3)
    G05751529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. FUEL PRESSURE SENSOR AND PORT INJECTION SIDE FUEL SYSTEM WIRING DIAGRAM

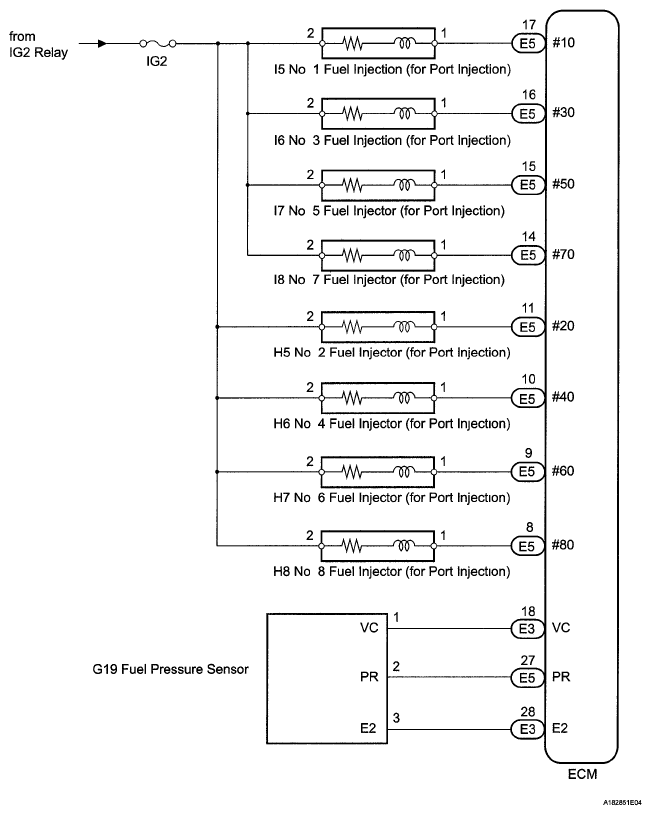

    Fig 7: Fuel Pressure Sensor And Port Injection Side Fuel System - Wiring Diagram
    G05749924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. LOW PRESSURE SIDE FUEL SYSTEM WIRING DIAGRAM

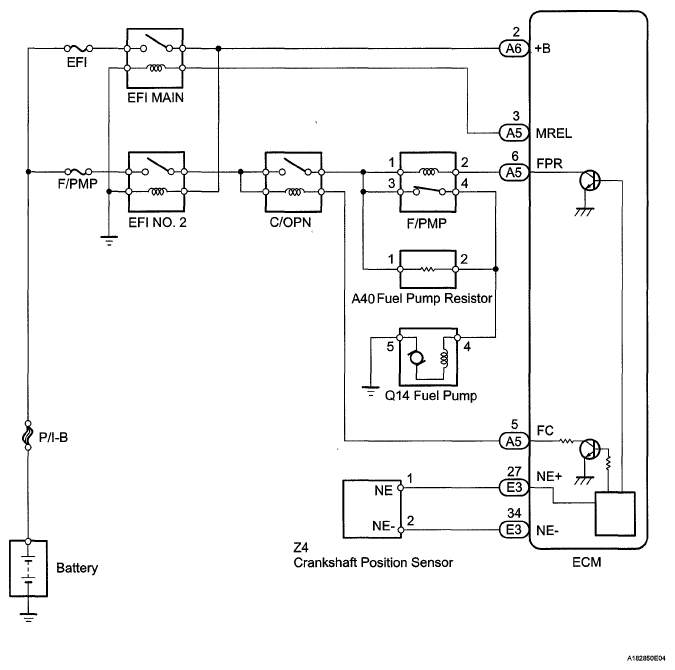

    Fig 8: Low Pressure Side Fuel System - Wiring Diagram
    G05749925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INJECTOR DRIVER WIRING DIAGRAM

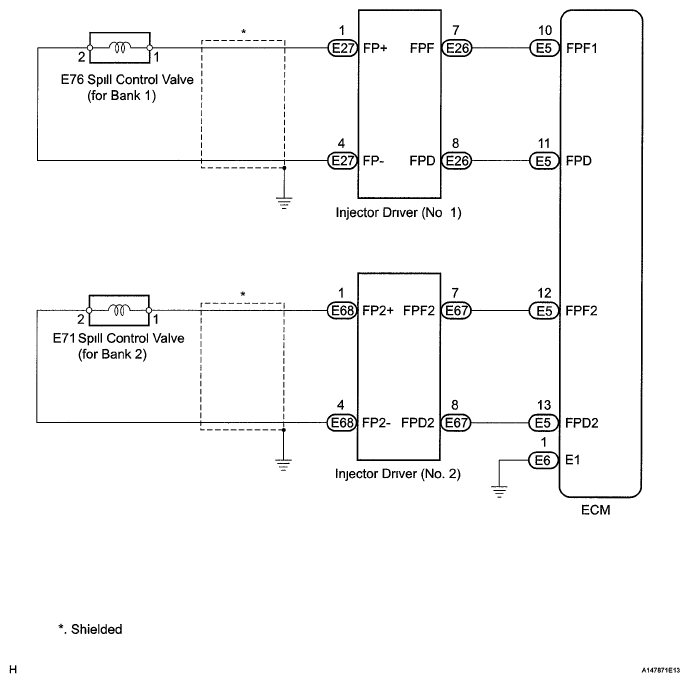

    Fig 9: Injector Driver - Wiring Diagram
    G05749926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
