Automatic Transmission Assembly: Components

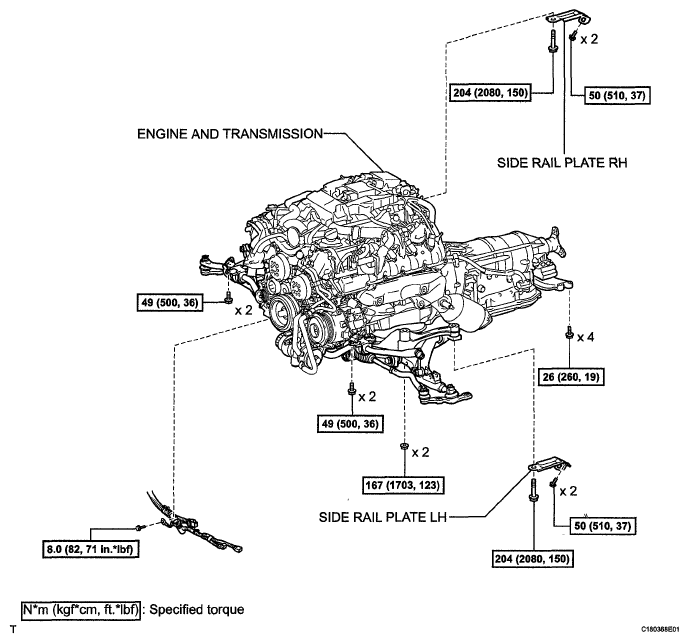

Fig 1: Automatic Transmission Assembly Replacement Components (1 Of 3) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

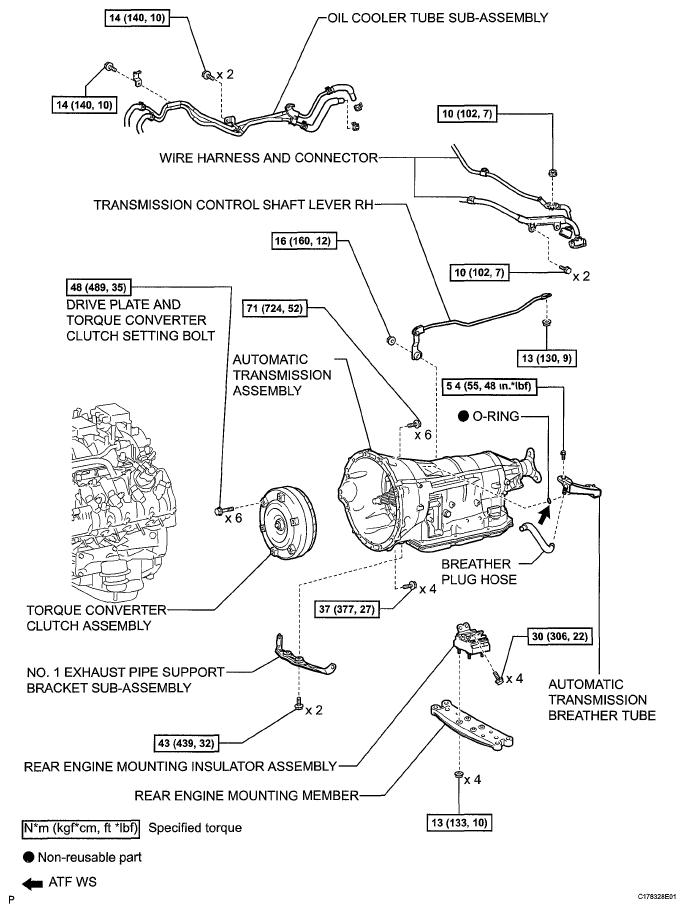

Fig 2: Automatic Transmission Assembly Replacement Components (2 Of 3) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

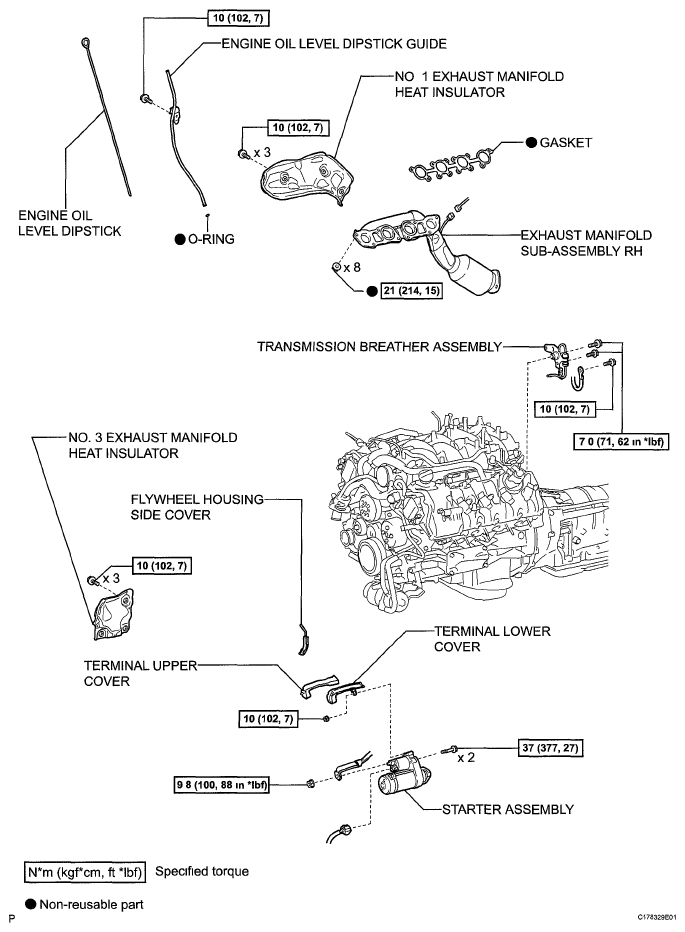

Fig 3: Automatic Transmission Assembly Replacement Components (3 Of 3) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
