System Diagram

The configuration of the electronic control system in the AA80E automatic transmission is as shown in the following chart

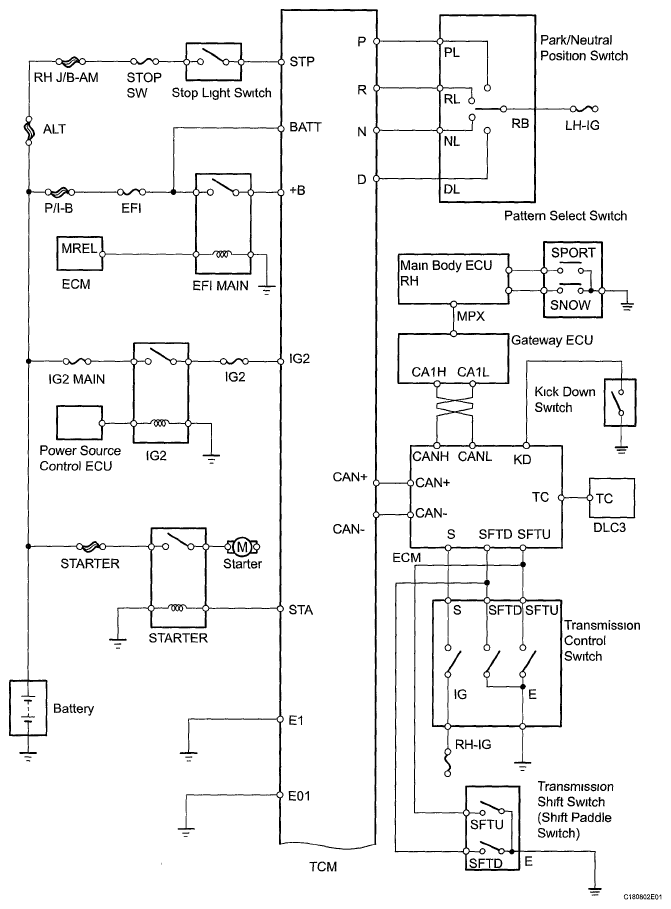

Fig 1: Automatic Transmission System Diagram (1 Of 2)
G05750670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

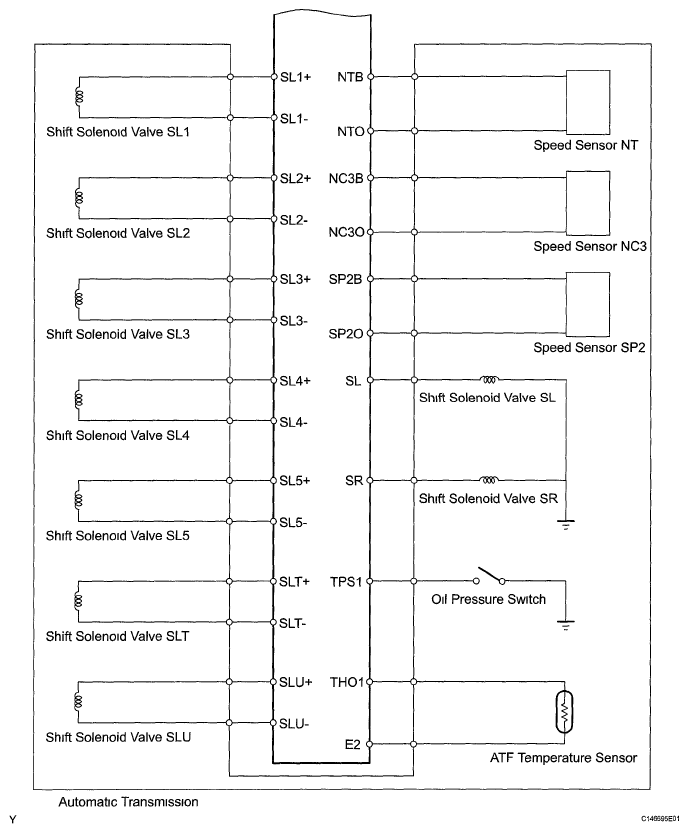

Fig 2: Automatic Transmission System Diagram (2 Of 2)
G05750671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
