Home >> Lexus >> 2008 >> IS F >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle >> Oil Pump >> Components

Oil Pump: Components

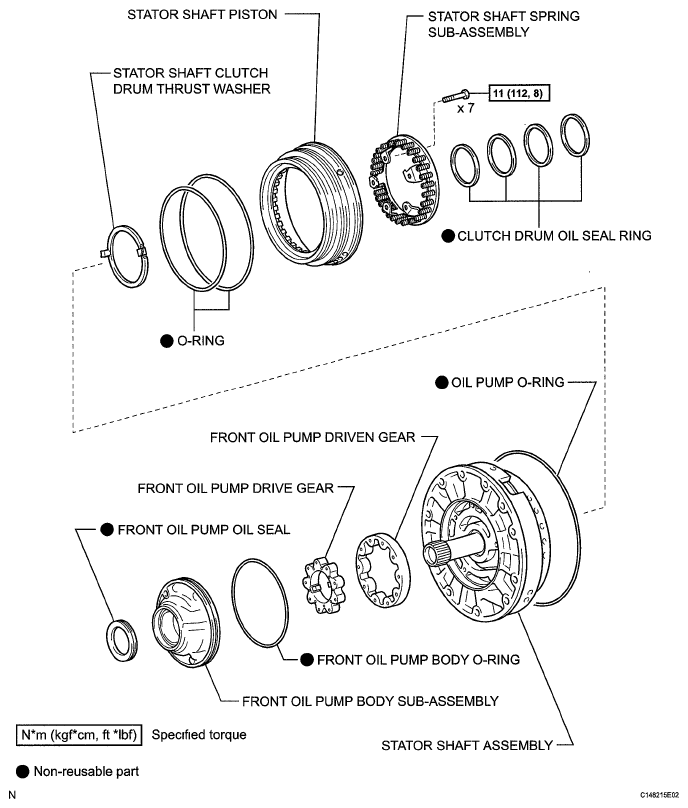

Fig 1: Oil Pump Replacement Components With Torque Specifications
G05751215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
