Transmission Control Switch: Components

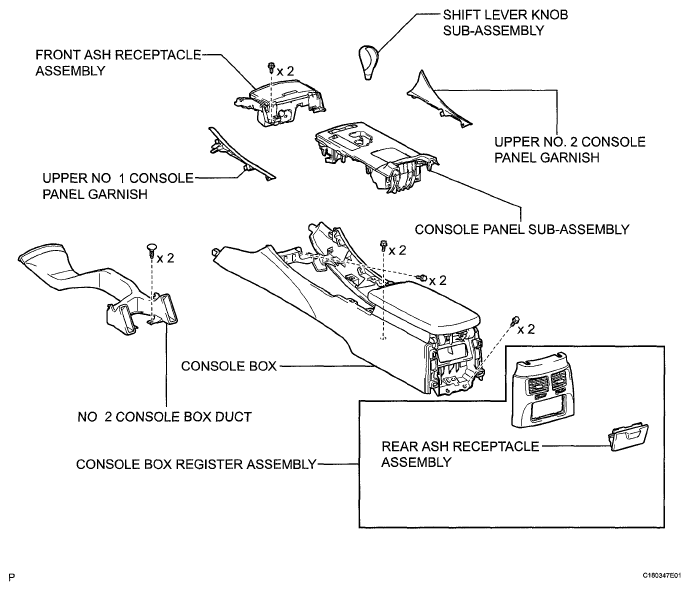

Fig 1: Identifying Transmission Control Switch Replacement Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Transmission Control Switch Replacement Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

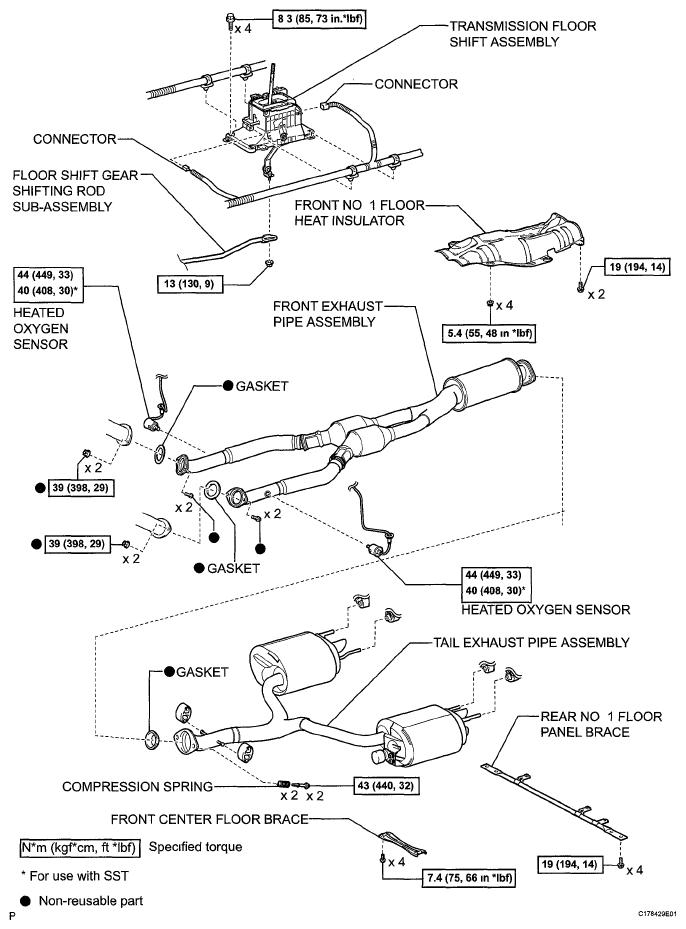

Fig 3: Transmission Control Switch Replacement Components (3 Of 4) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

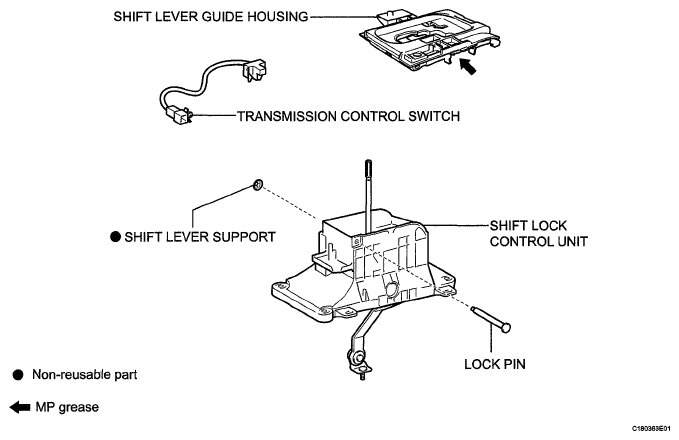

Fig 4: Identifying Transmission Control Switch Components (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
