Home >> Lexus >> 2008 >> IS F >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle >> Valve Body Assembly >> Components

Valve Body Assembly: Components

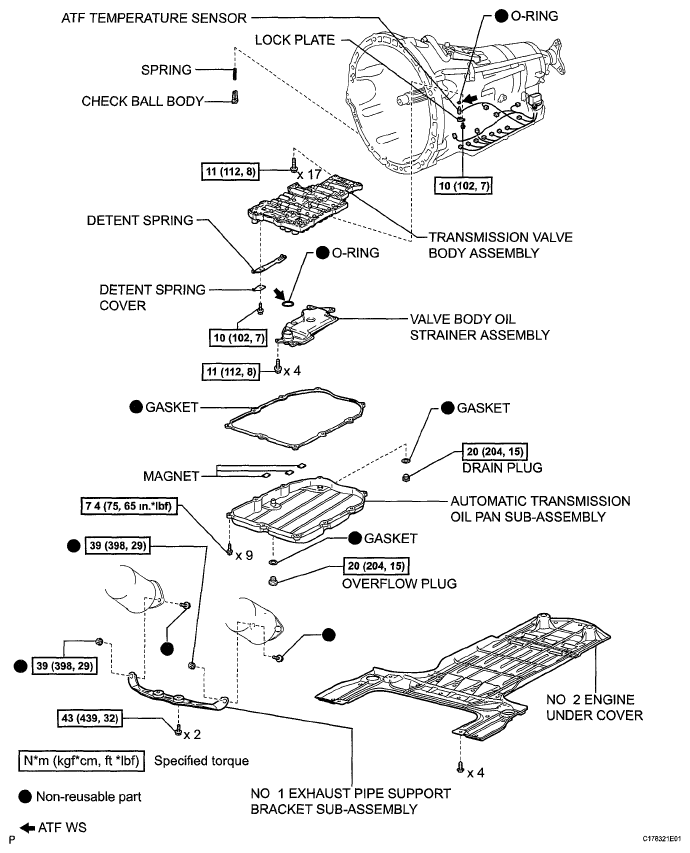

Fig 1: Valve Body Assembly Replacement Components (1 Of 2) with Torque Specifications
G05750830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

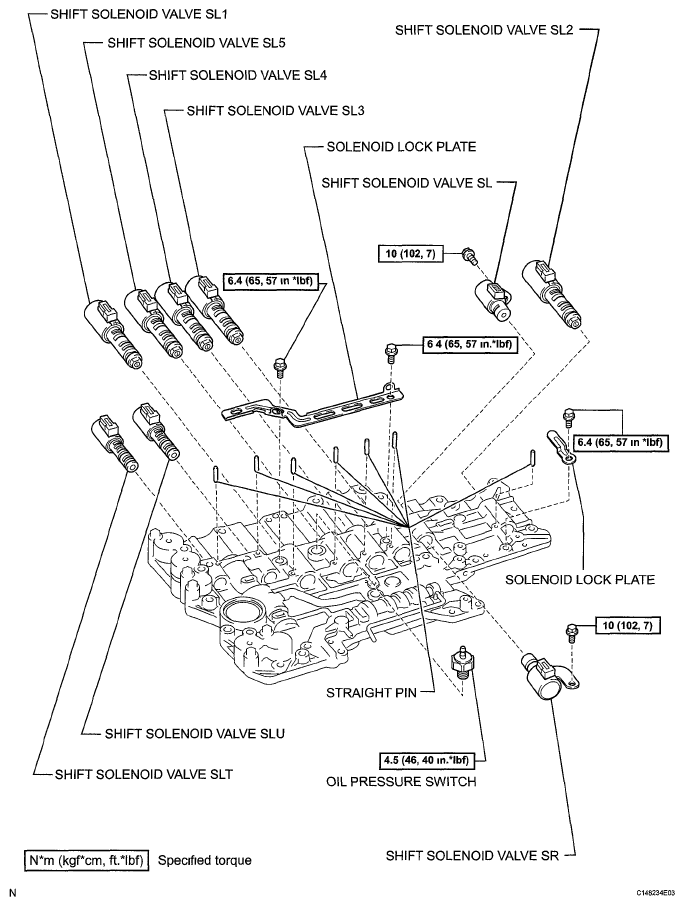

Fig 2: Valve Body Assembly Replacement Components (2 Of 2) with Torque Specifications
G05750831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
