Power Window Control System
>>
Parts Location
Parts Location

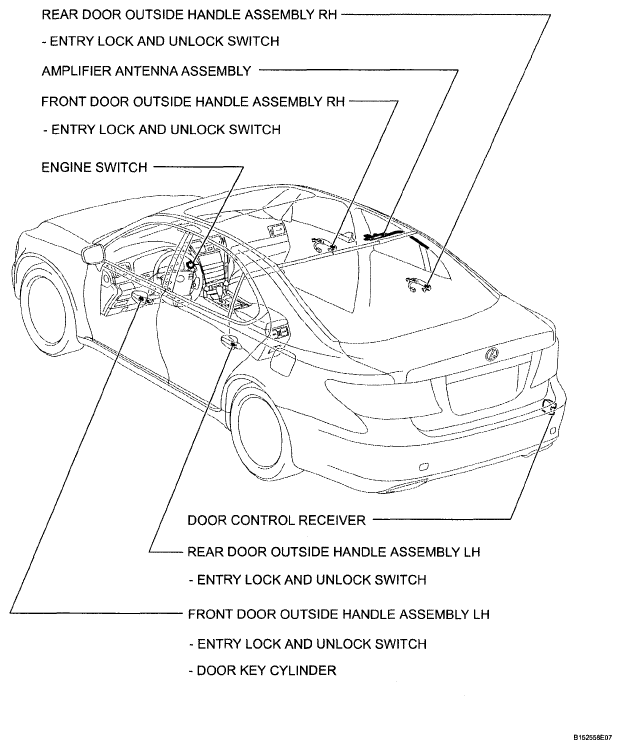

Fig 1: Identifying Power Window Control System Replacement Components (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

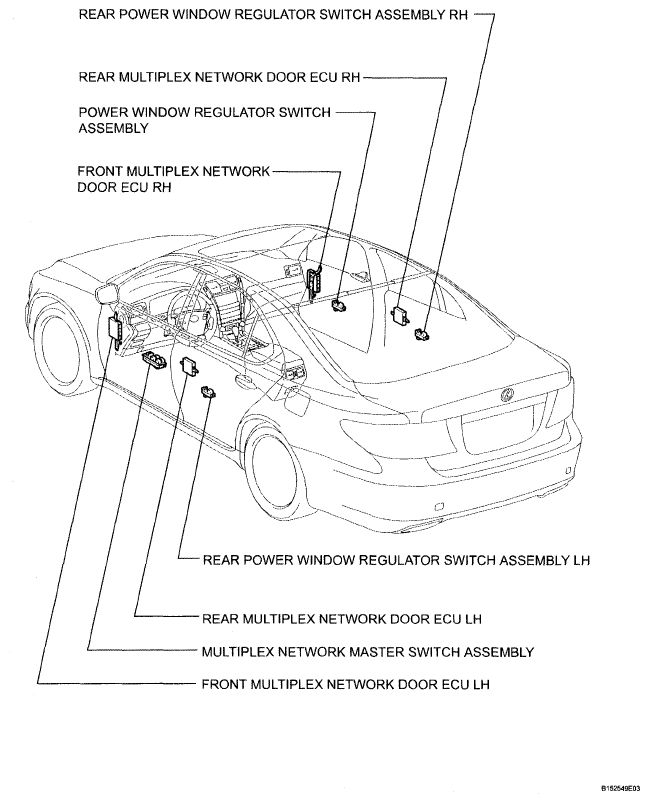

Fig 2: Identifying Power Window Control System Replacement Components (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

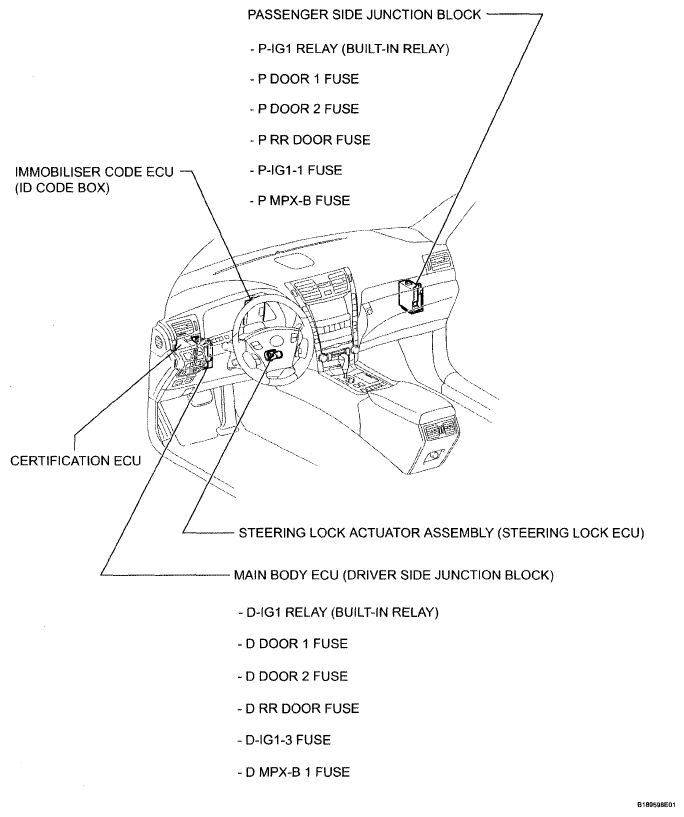

Fig 3: Identifying Power Window Control System Replacement Components (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Power Window Control System Replacement Components (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
