Home >> Lexus >> 2008 >> LS 460 >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control >> Front Speed Sensor >> Components

Front Speed Sensor: Components

Fig 1: Front Speed Sensor Replacement Components With Torque Specifications (1 Of 2)
G05848363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

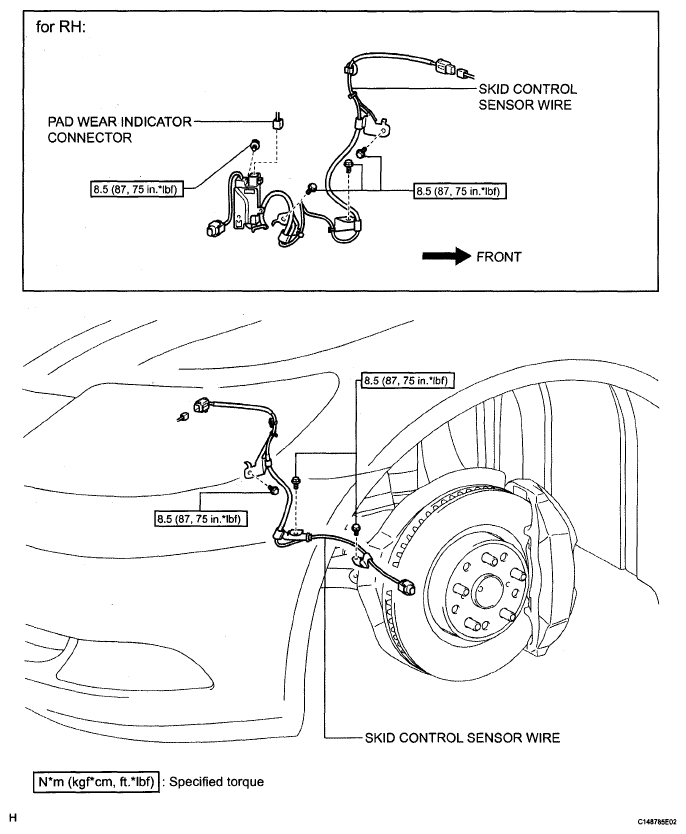

Fig 2: Front Speed Sensor Replacement Components With Torque Specifications (2 Of 2)
G05848364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
