Fuel Pressure Sensor: Components

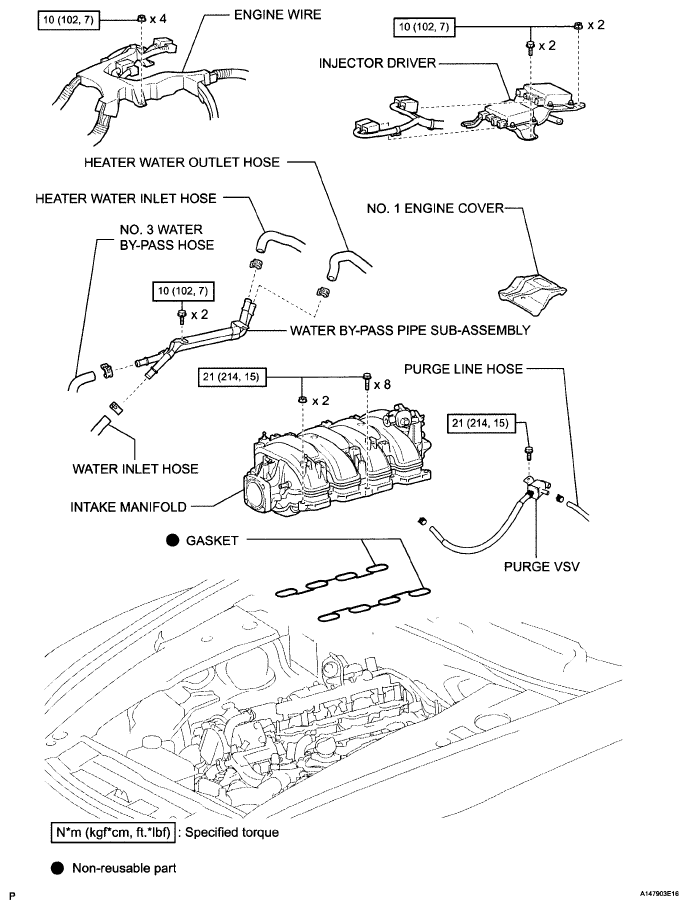

Fig 1: Identifying Fuel Pressure Sensor Replacement Components With Torque Specifications (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Fuel Pressure Sensor Replacement Components With Torque Specifications (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Fuel Pressure Sensor Replacement Components With Torque Specifications (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Fuel Pressure Sensor Replacement Components With Torque Specification (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
