Engine Control System - SFI System Introduction, DTC Chart
>>
SFI System
>>
Parts Location
Parts Location

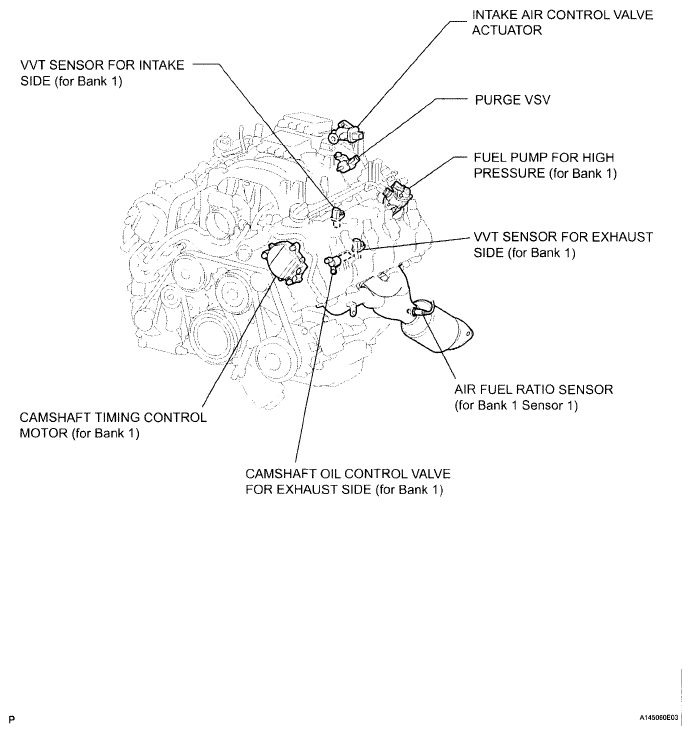

Fig 1: Identifying SFI System Components Location (1 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying SFI System Components Location (2 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying SFI System Components Location (3 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying SFI System Components Location (4 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Identifying SFI System Components Location (5 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Identifying SFI System Components Location (6 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
