Home >> Lexus >> 2008 >> LS 460 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle >> Speed Sensor >> Components

Speed Sensor: Components

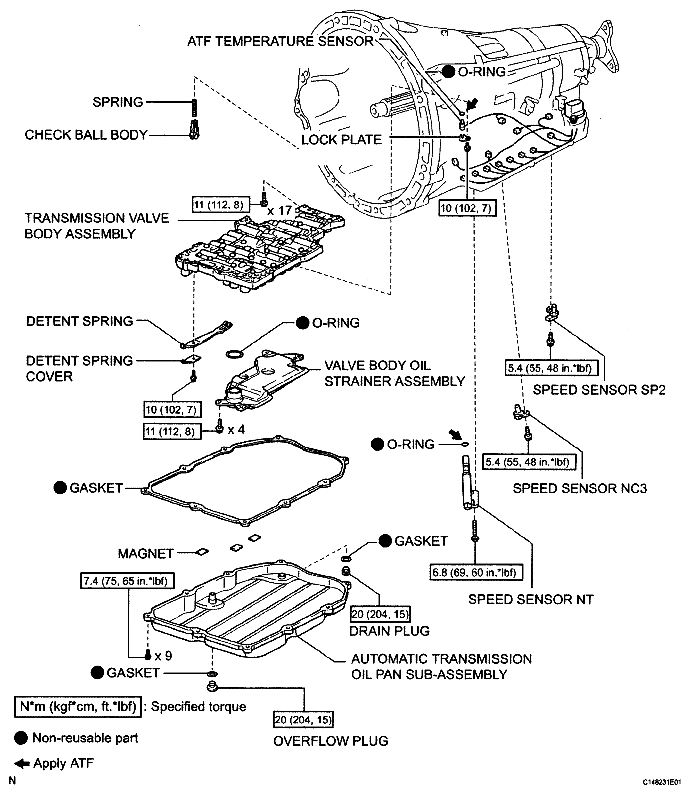

Fig 1: Speed Sensor Replacement Components With Torque Specifications
G04948405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
