LS 600hL
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control
>>
Brake Actuator
>>
Components
Brake Actuator: Components

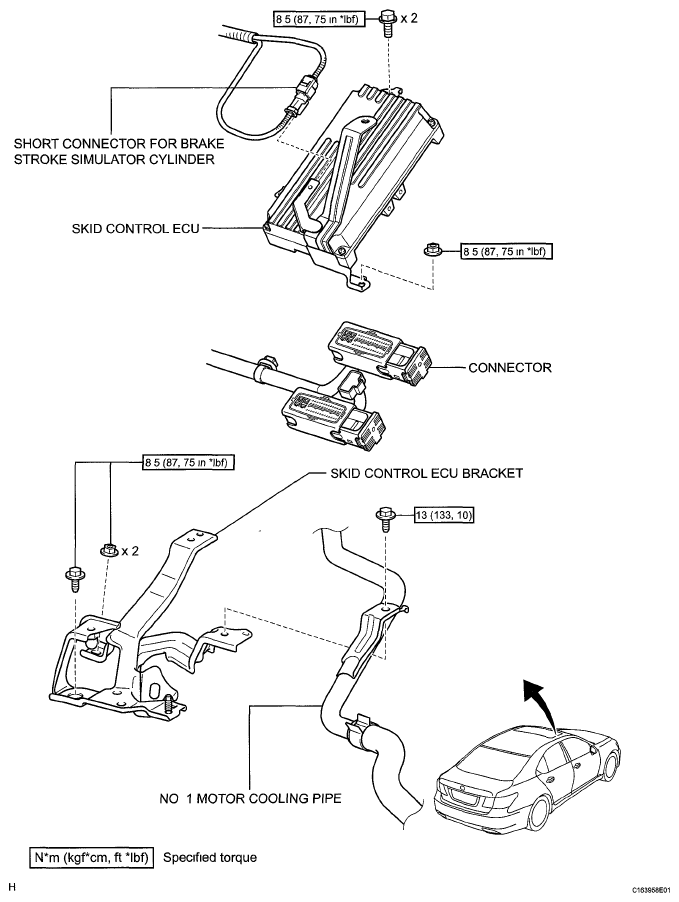

Fig 1: Identifying Brake Actuator Components (1 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

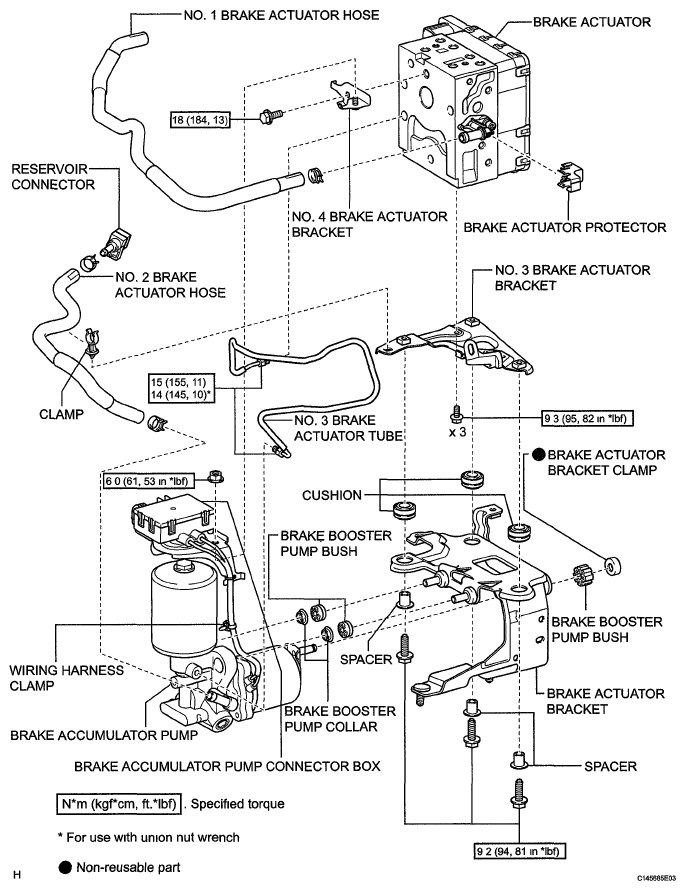

Fig 2: Identifying Brake Actuator Components (2 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

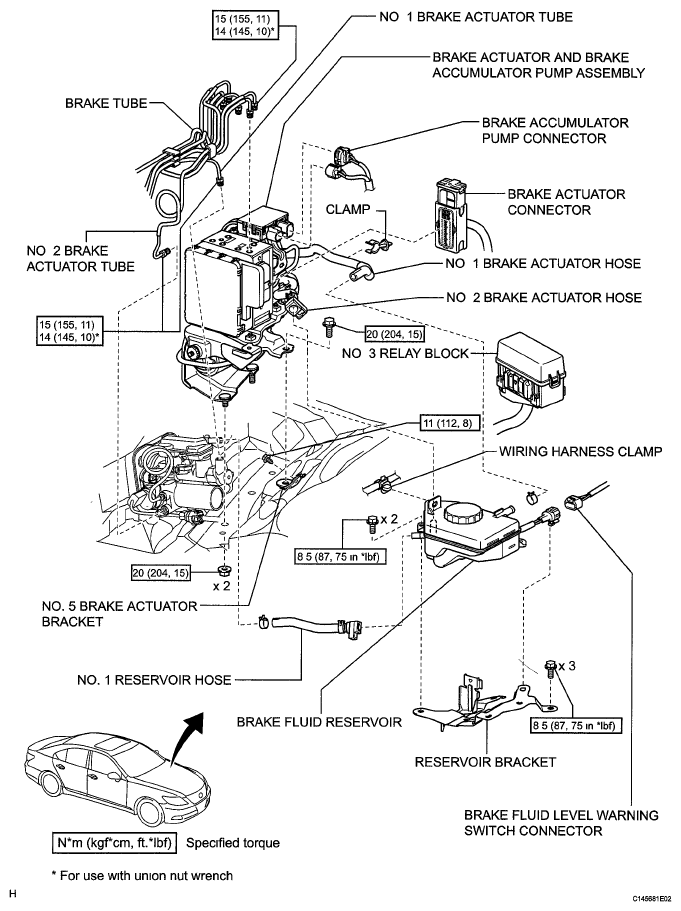

Fig 3: Brake Actuator Replacement Components With Torque Specifications (3 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Brake Actuator Replacement Components With Torque Specifications (4 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Brake Actuator Replacement Components With Torque Specifications (5 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Brake Actuator Replacement Components With Torque Specifications (6 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
