Front Speed Sensor: Components

Fig 1: Identifying Front Speed Sensor Components (1 Of 2)
G05774065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

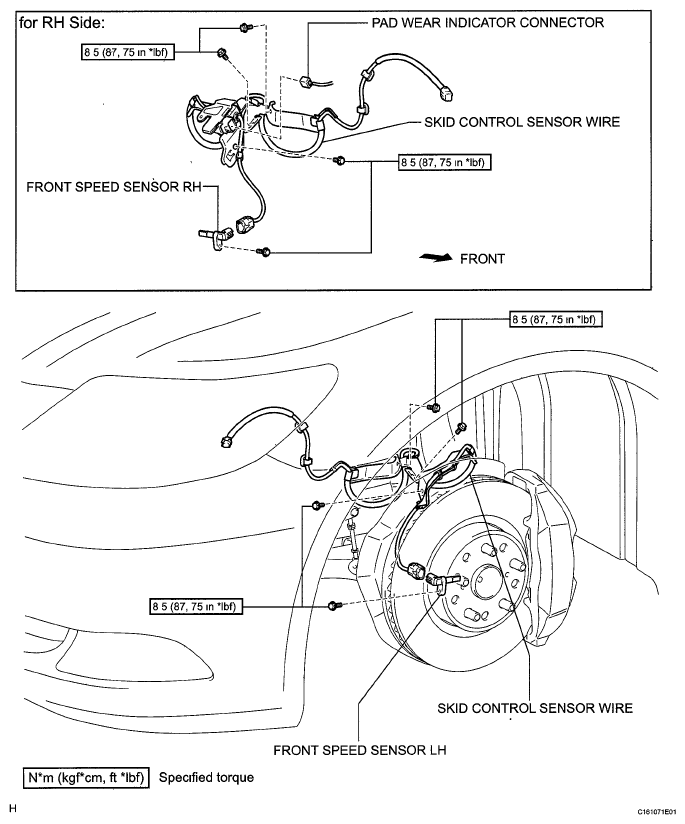

Fig 2: Front Speed Sensor Replacement Components With Torque Specifications (2 Of 2)
G05774117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
