FUEL INJECTOR (for Direct Injection): Components

Fig 1: Fuel Injector Replacement Components With Torque Specifications (1 Of 2)
G05772882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

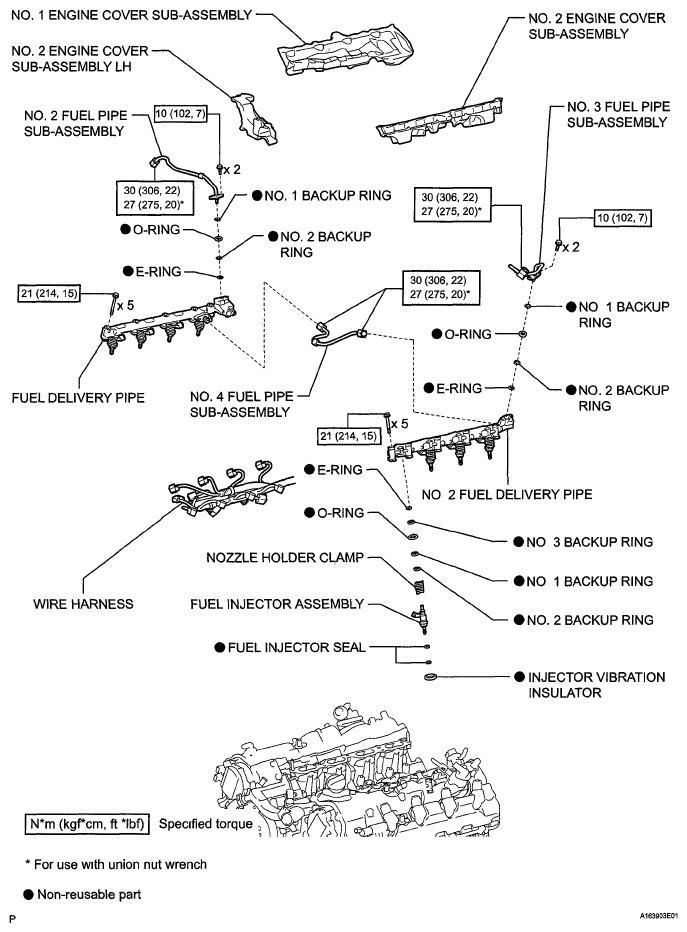

Fig 2: Fuel Injector Replacement Components With Torque Specifications (2 Of 2)
G05772883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
