Fuel Relief Valve: Components

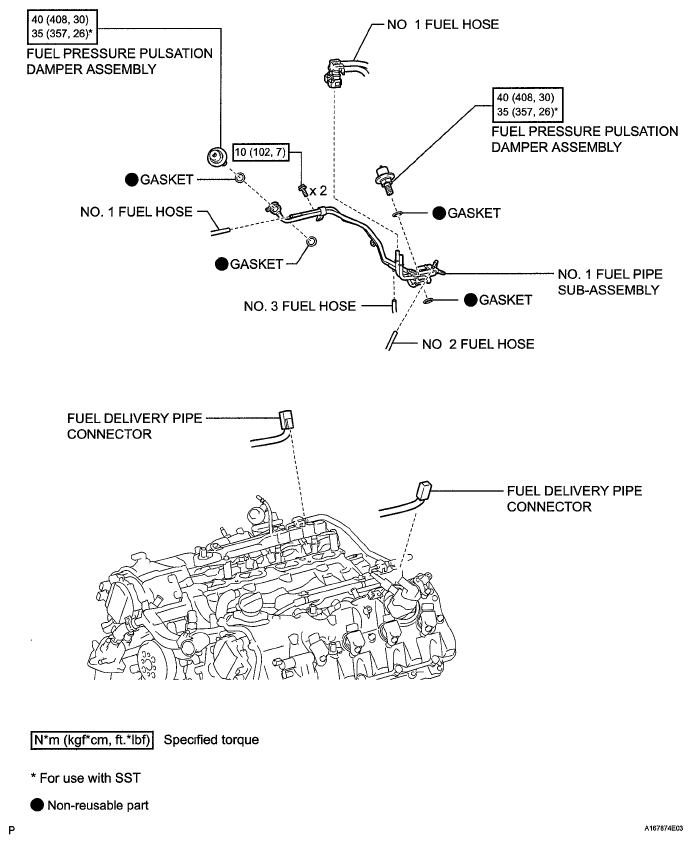

Fig 1: Fuel Pump Replacement Components With Torque Specifications (1 Of 2)
G05772977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

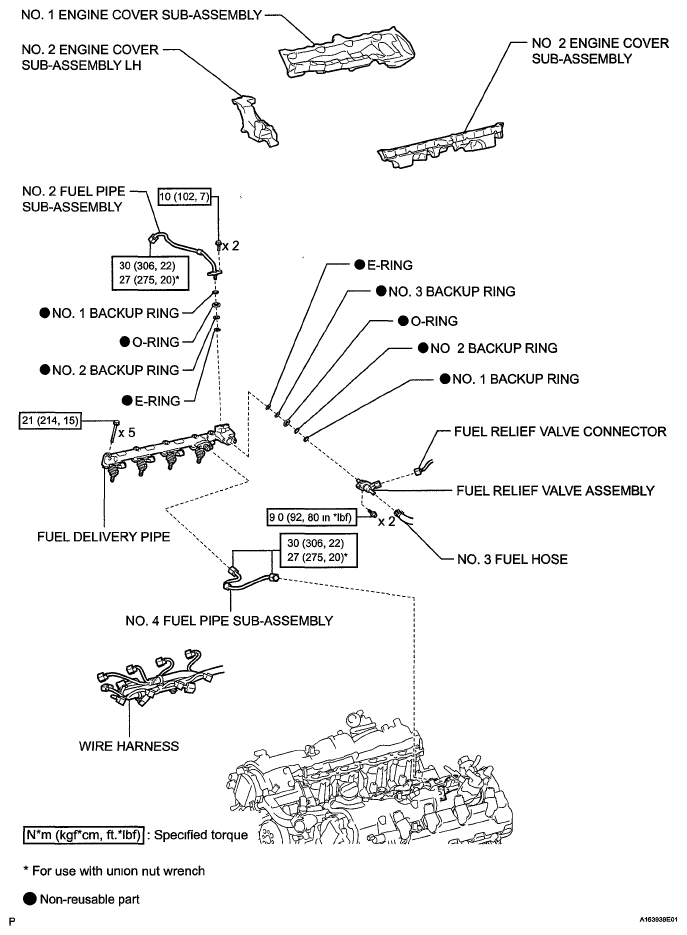

Fig 2: Fuel Relief Valve Replacement Components With Torque Specifications (2 Of 2)
G05772978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
