General Maintenance

  1. INSPECT STEERING LINKAGE
    1. Check the steering wheel free play (See ON-VEHICLE INSPECTION ).
    2. Check the steering linkage for looseness or damage.
      1. Check that the tie rod ends do not have excessive play.
      2. Check that the dust seals and boots are not damaged.
      3. Check that the boot clamps are not loose.
      4. Check that the steering gear housing is not damaged.
      5. Check that the connectors are properly connected to the steering gear housing.
  2. INSPECT STEERING GEAR BOX  (See INSPECTION )
  3. INSPECT BALL JOINT AND DUST COVER
    1. Inspect the front suspension upper arm assembly (See INSPECTION ).
    2. Inspect the front suspension lower arm assembly (See INSPECTION ).
  4. INSPECT DRIVE SHAFT BOOTS
    1. Check the drive shaft boots for loose clamps, grease leakage, kinks or damage.
  5. INSPECT AUTOMATIC TRANSMISSION FLUID
    1. Inspect the automatic transmission fluid and correct or replace as necessary (See AUTOMATIC TRANSMISSION FLUID ).
  6. INSPECT TRANSFER OIL
    1. Inspect the transfer oil (See TRANSFER OIL ).
    2. Replace the transfer oil as necessary (See REPLACEMENT ).
  7. INSPECT FRONT DIFFERENTIAL OIL LEVEL
    1. Check the front differential oil level (See REPLACEMENT ).
  8. INSPECT REAR DIFFERENTIAL OIL
    1. Check the rear differential oil level (See REPLACEMENT ).
  9. REPLACE ACTIVE HEIGHT CONTROL SUSPENSION FLUID
    1. Discharge the suspension fluid pressure (See REMOVAL ).
    2. Fill the reservoir tank with the suspension fluid (See BLEEDING ).
  10. INSPECT SUSPENSION CONTROL ACCUMULATOR ASSEMBLY
    1. Inspect the front suspension control accumulator assembly (See ON-VEHICLE INSPECTION ).
    2. Inspect the rear suspension control accumulator assembly (See ON-VEHICLE INSPECTION ).
  11. LUBRICATE PROPELLER SHAFT AND TIGHTEN BOLTS
    1. Lubricate the propeller shaft by referring to the lubrication chart. Before pumping in grease, wipe off any mud and dust on the grease fitting.
      GREASE GRADE REFERENCE

      Item Grease Grade
      Propeller shaft spider Lithium base chassis grease NLGI No. 2
      1. For front propeller shaft

        HINT:

        When replacing a spider bearing, be sure that the grease fitting hole is facing the direction shown in the illustration.

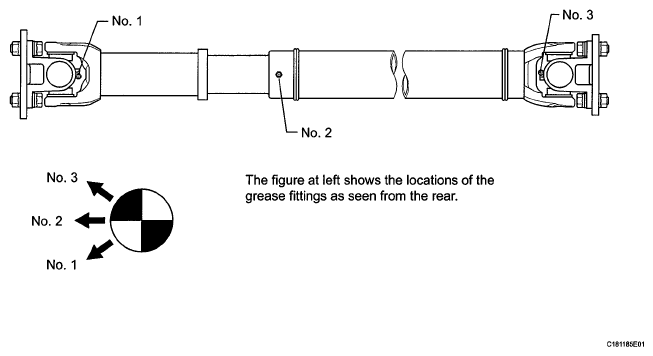

        Fig 1: Identifying Front Propeller Shaft Grease Fittings
        G05757430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. For rear propeller shaft

        HINT:

        When replacing a spider bearing, be sure that the grease fitting hole is facing the direction shown in the illustration.

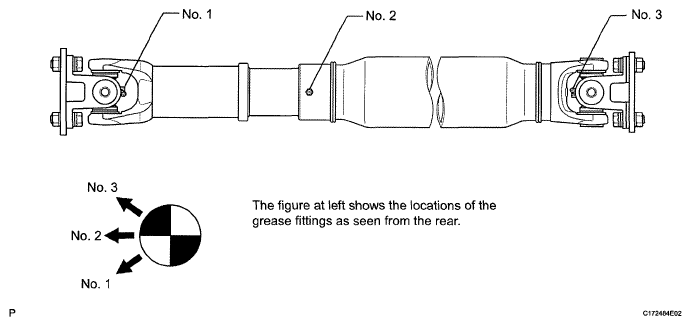

        Fig 2: Identifying Rear Propeller Shaft Grease Fittings
        G05637884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tighten the bolts of the propeller shaft.
      PROPELLER SHAFT REFERENCE

      Type See Procedures
      For front propeller shaft INSTALLATION
      For rear propeller shaft INSTALLATION
