Fuel Pump Ecu: Components

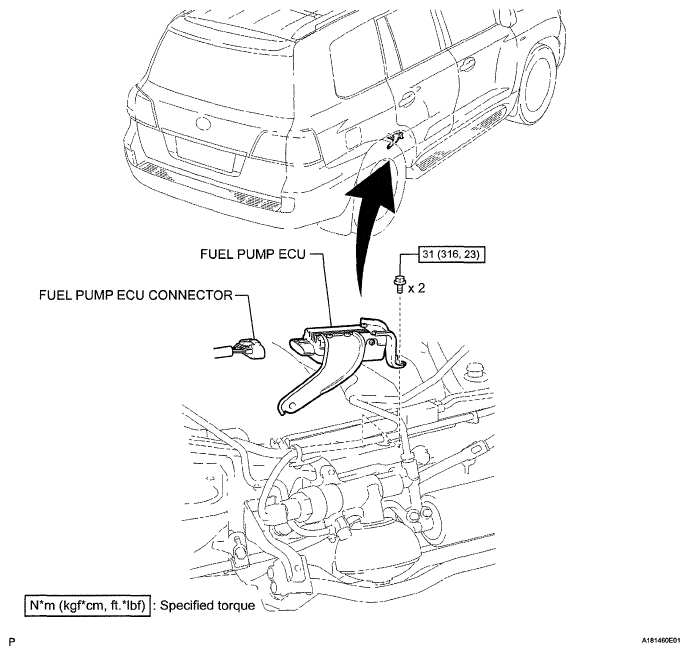

Fig 1: Fuel Pump ECU Replacement Components With Torque Specifications
G05759606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
