Vehicle Identification And Serial Numbers

  1. VEHICLE IDENTIFICATION NUMBER
    1. The vehicle identification number is stamped on the vehicle identification number plate and on the certification label, as shown in the illustration.
      1. Vehicle Identification Number Plate
      2. Certification Label
      Fig 1: Identifying Vehicle Identification And Serial Numbers
      G05290832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER
    1. The engine serial number is stamped on the cylinder block of the engine and the transmission serial number is stamped on the housing as shown in the illustrations.
      1. Engine Serial Number
        Fig 2: Identifying Engine Serial Number
        G05290833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

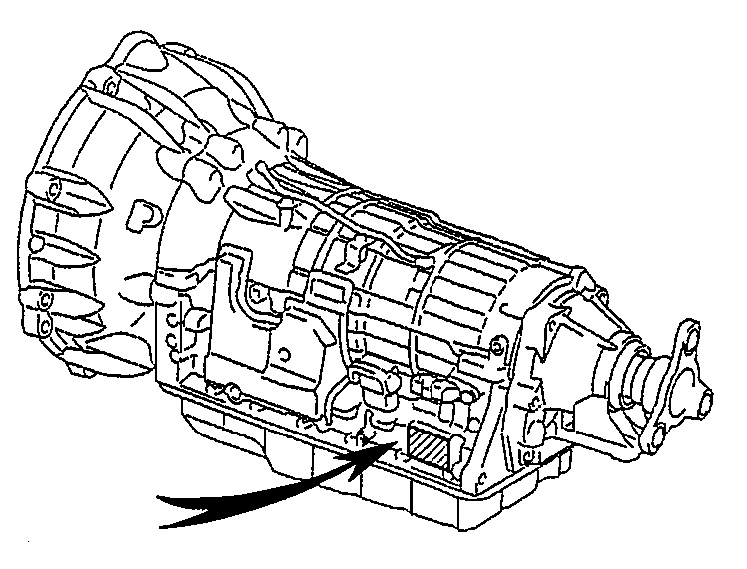

      2. Transmission Serial Number
        Fig 3: Identifying Transmission Serial Number
        G00468390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
