Automatic Transmission Assembly: Components

Fig 1: Identifying Automatic Transmission Assembly Replacement Components With Torque Specification (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

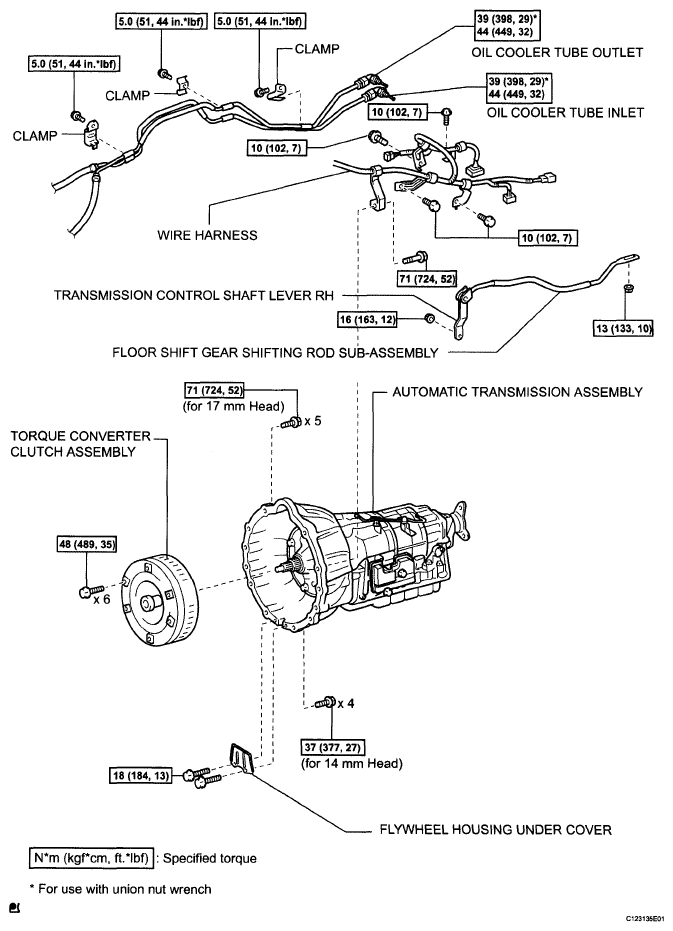

Fig 2: Identifying Automatic Transmission Assembly Replacement Components With Torque Specification (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

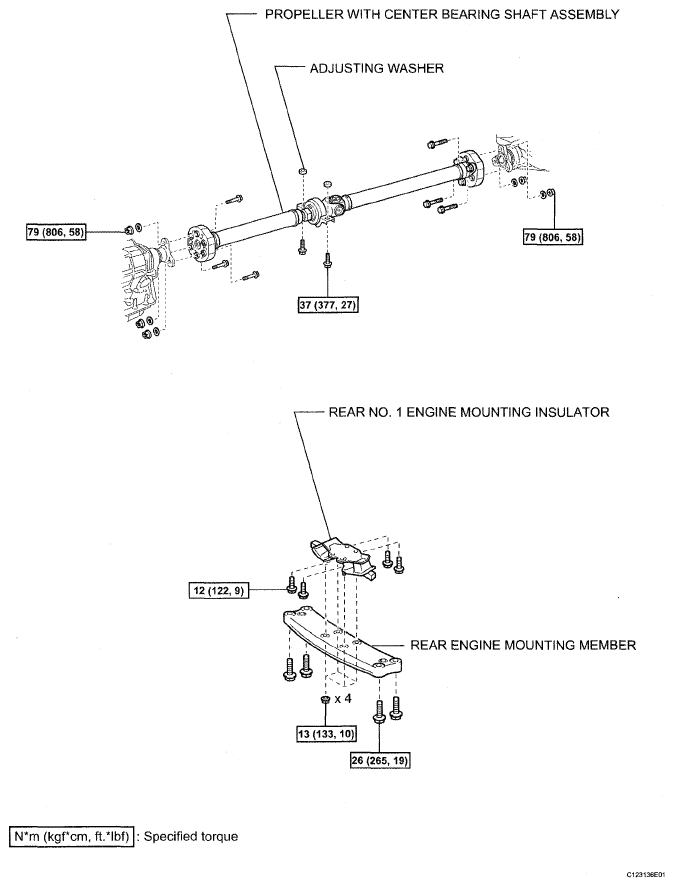

Fig 3: Identifying Automatic Transmission Assembly Replacement Components With Torque Specification (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
