Clutch Drum And Input Shaft Assembly: Components

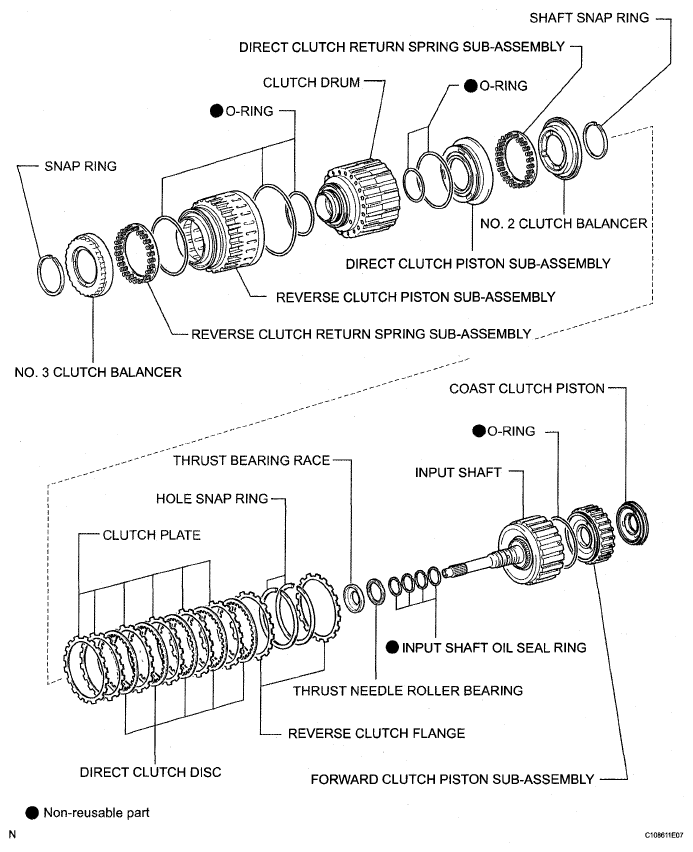

Fig 1: Identifying Clutch Drum And Input Shaft Assembly Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

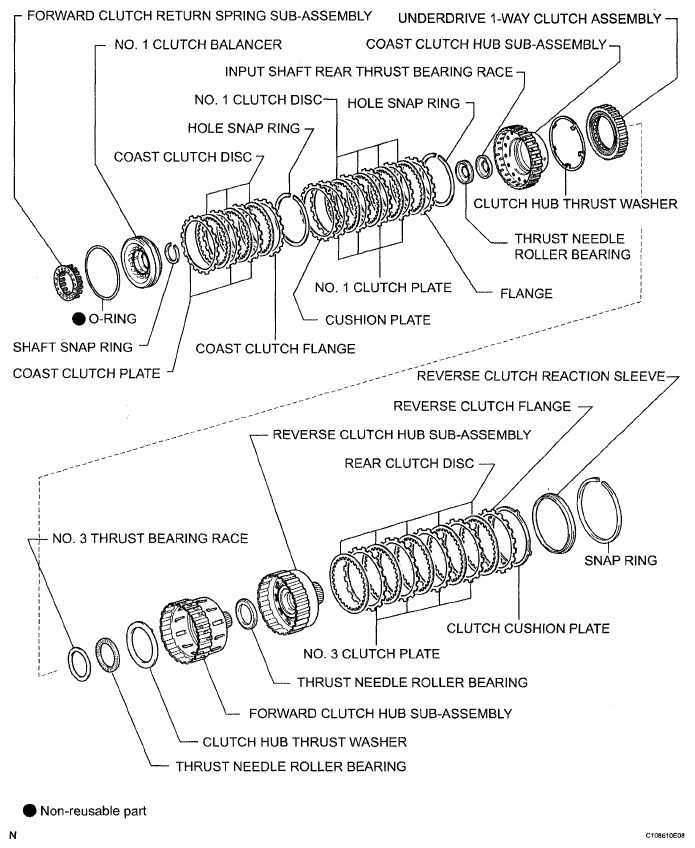

Fig 2: Identifying Clutch Drum And Input Shaft Assembly Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
