Home >> Lexus >> 2008 >> SC 430 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle >> Transmission Wire >> Components

Transmission Wire: Components

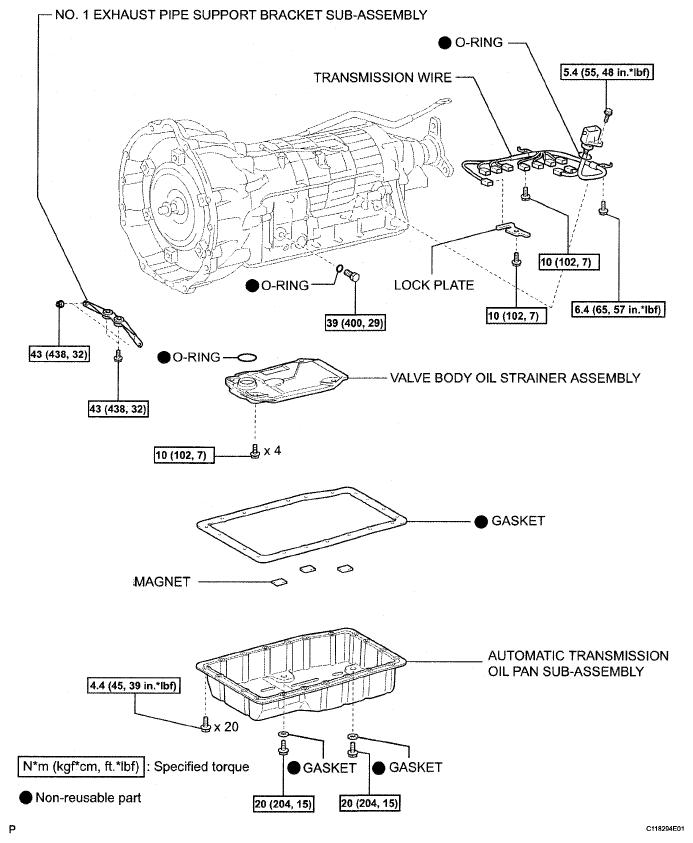

Fig 1: Transmission Wire Replacement Components With Torque Specifications

G05289658

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
